Piloter Introduction

Piloter Series

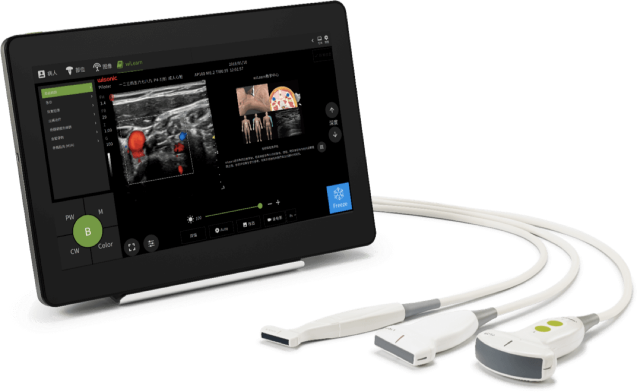

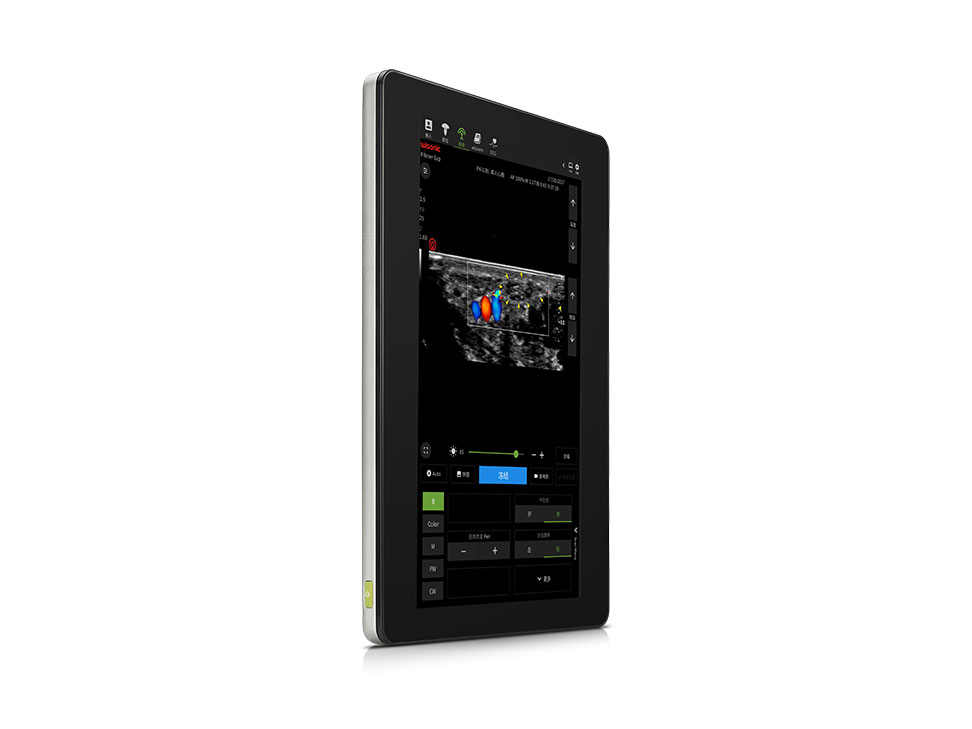

The Cutting-edge Tablet Ultrasound

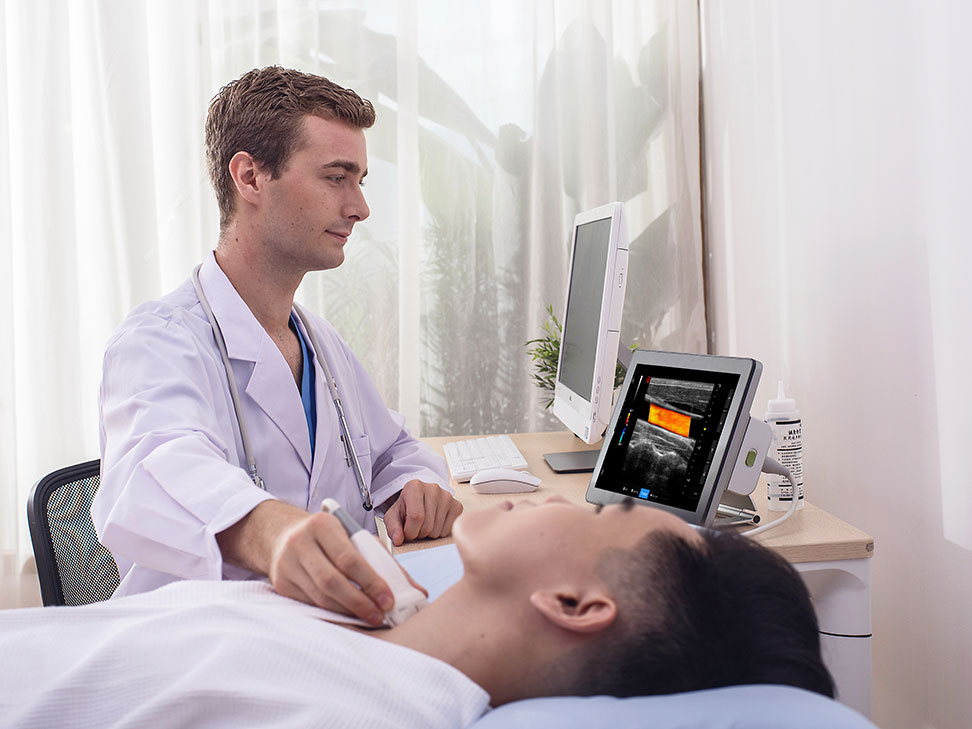

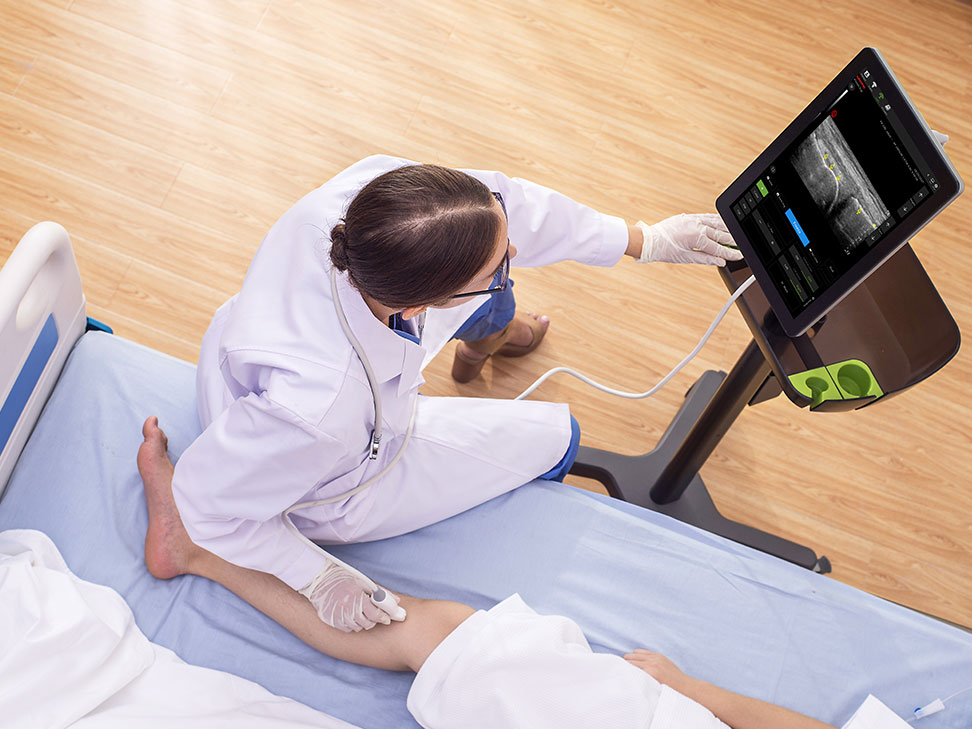

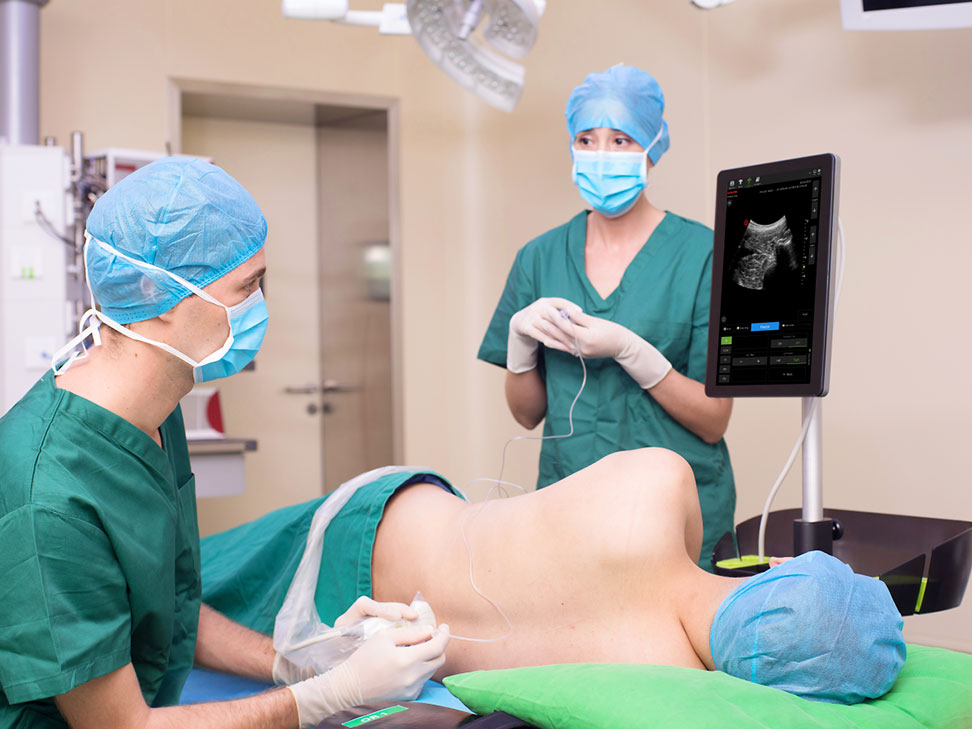

Application Scenarios

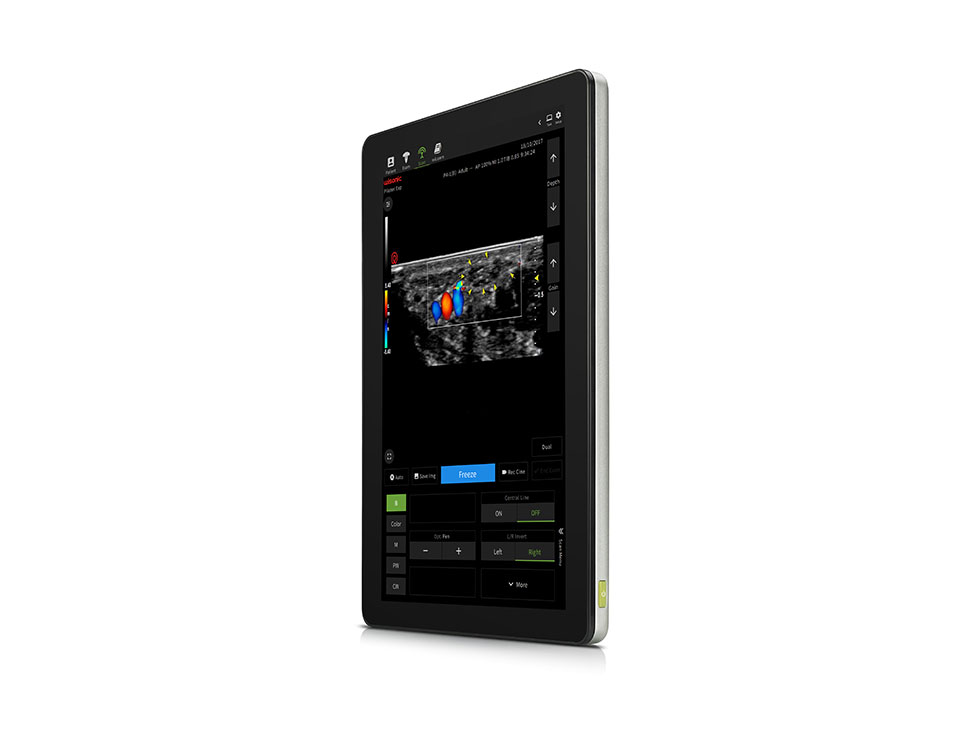

Smart Design

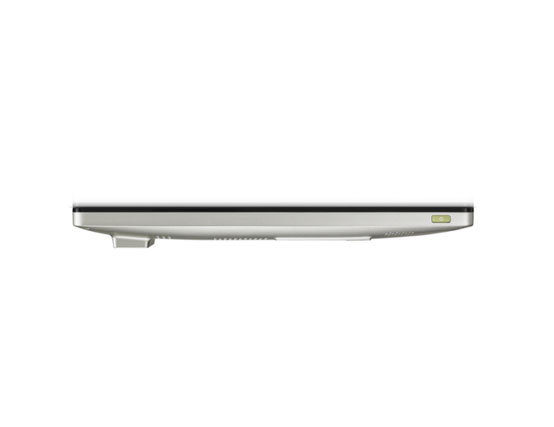

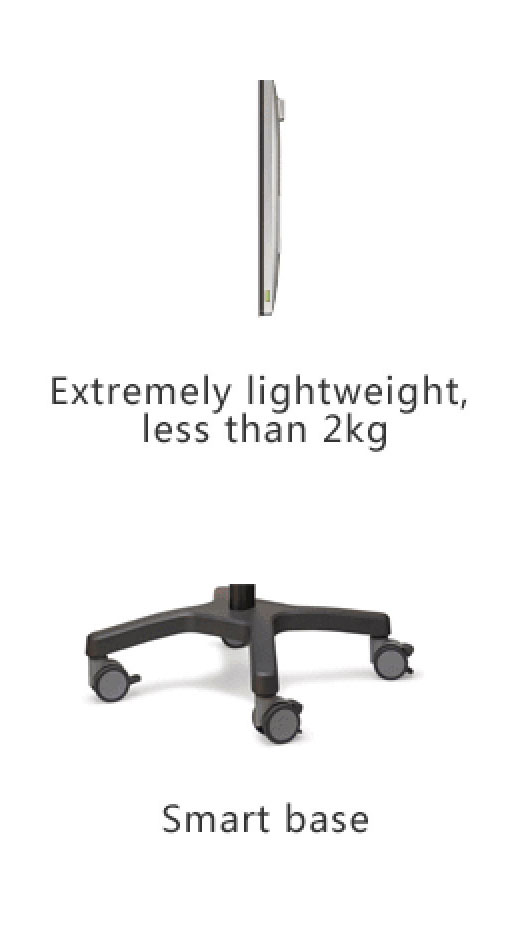

1.9Kg

  • Extremely slim, Like an Ipad
  • Out door visit

Mg-Al alloy shell

  • Durable
  • Dissipate heat quickly

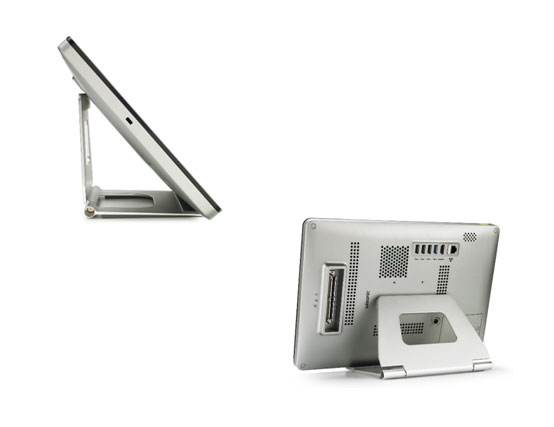

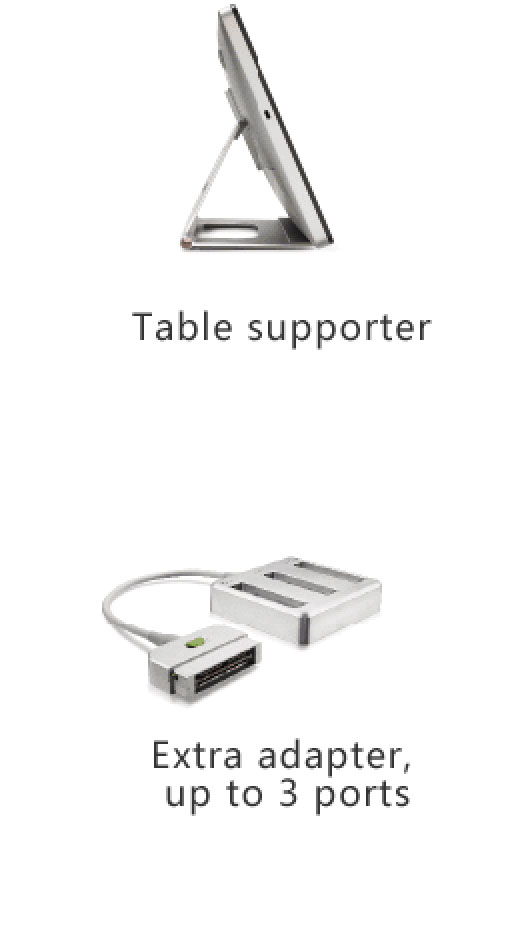

Table Stand

Table Use

  • Versatile application scenarios
  • Light for carry

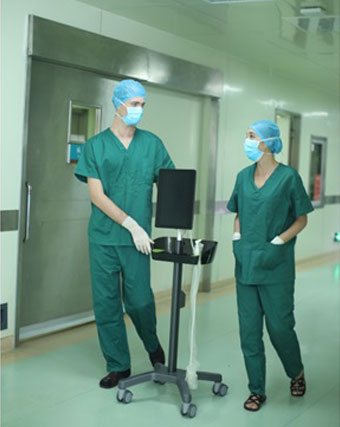

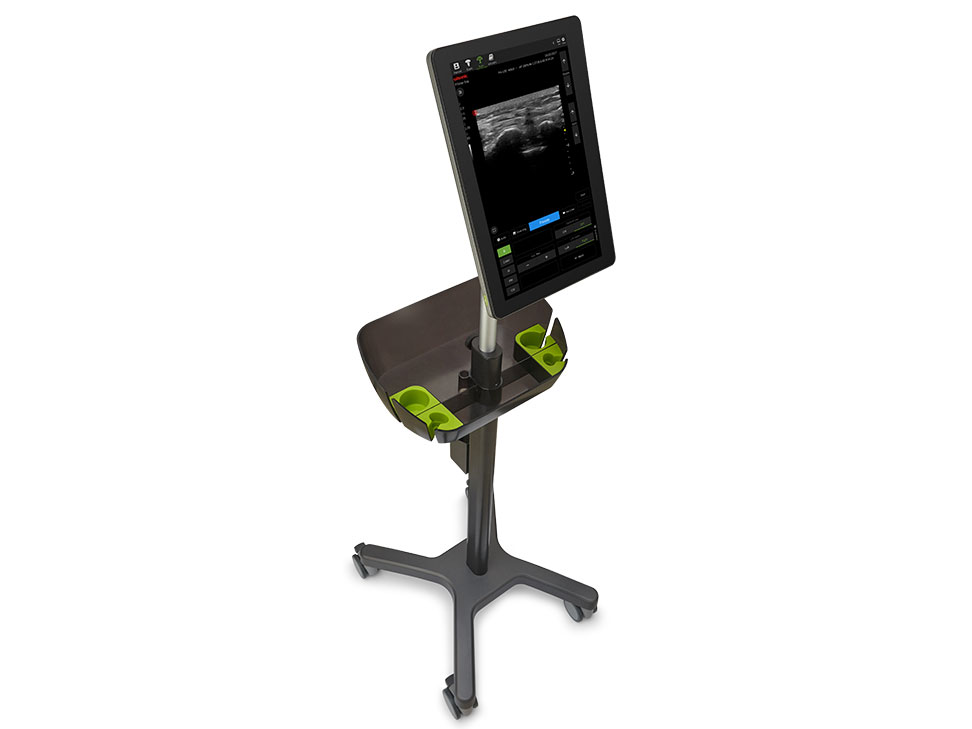

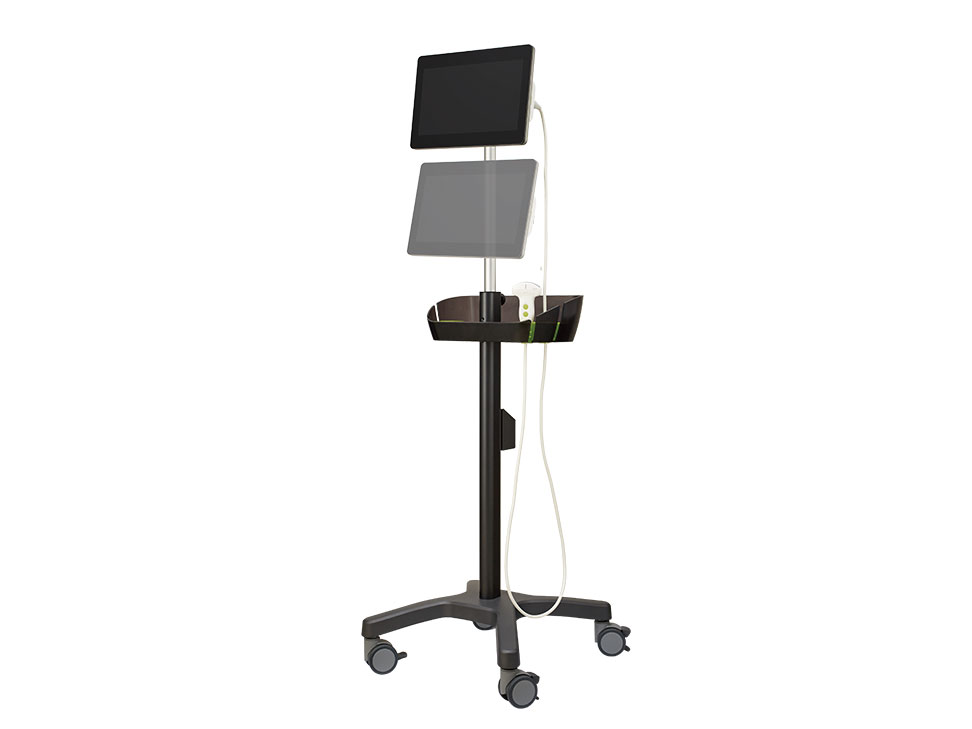

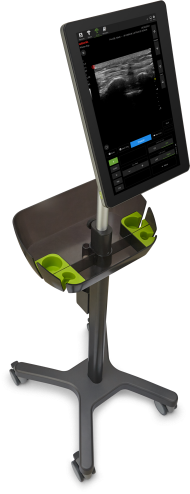

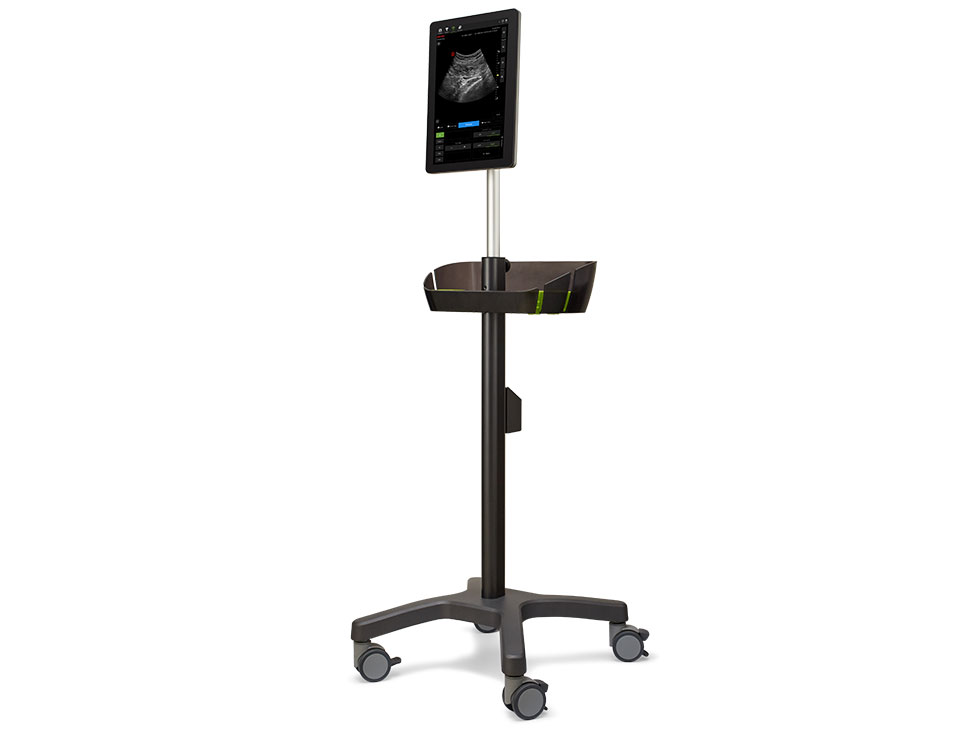

Trolly

Horizontal and Vertical Display

300mm Height

  • Easy to adjust to a standing or sitting position

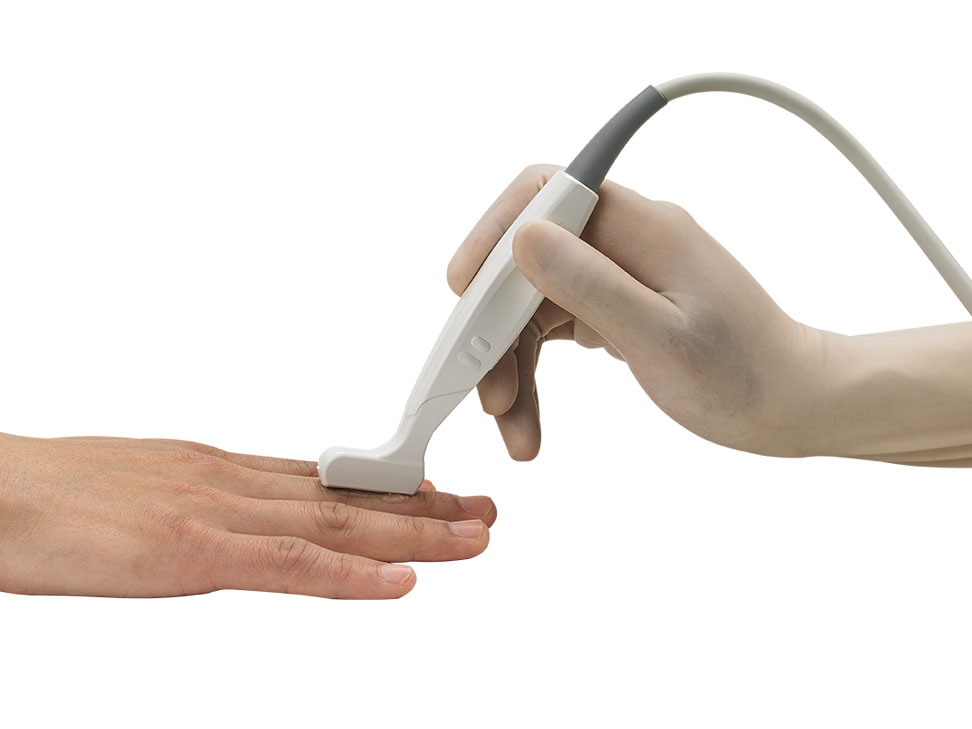

Probe Holder

  • Single-person disinfection

Advance Feature

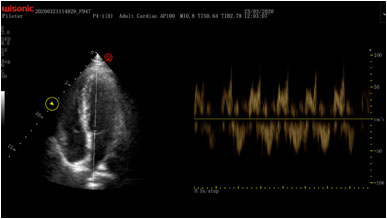

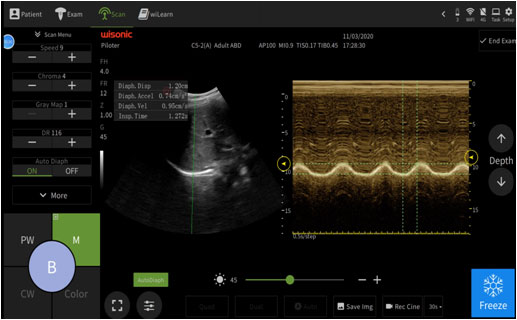

Auto Diaphragm

Cutting-edge Technology

  • Auto measurement of diaphragm speed rate

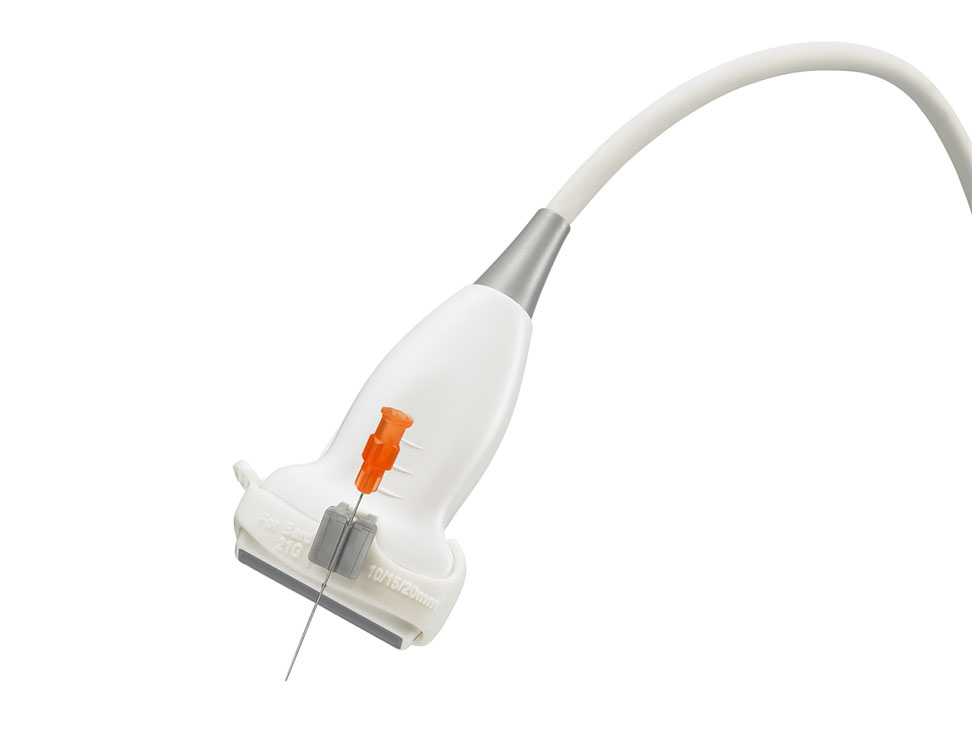

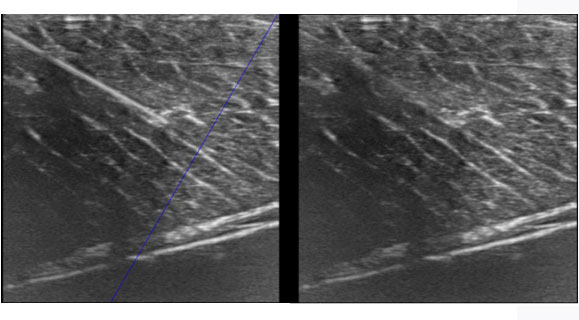

wiNeedle

Intelligent Needle Enhancement

  • Auto beam steering
  • Less interaction with system, keep hand sterile

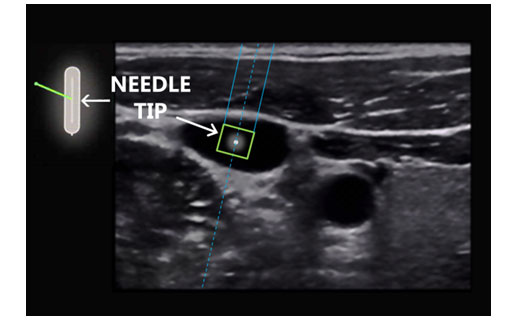

wiGuide

Intelligent Needle Tracking

  • Out of plane and in plane puncture
  • Simple and accurate

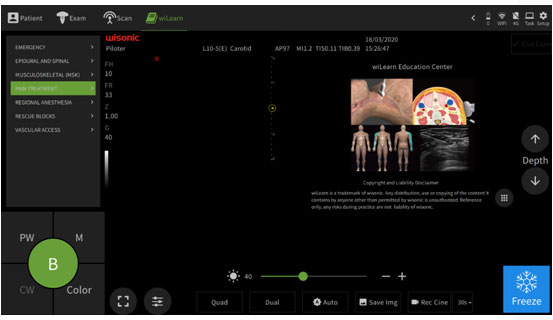

wiLearn

Education Center

  • Full range of POC application package
  • Shorten time of learning

Transducers

Other Applications

  • GYN
    --EV10-4
  • Pediatric heart
    --P7-3
  • Pediatric abdomen
    --C8-3

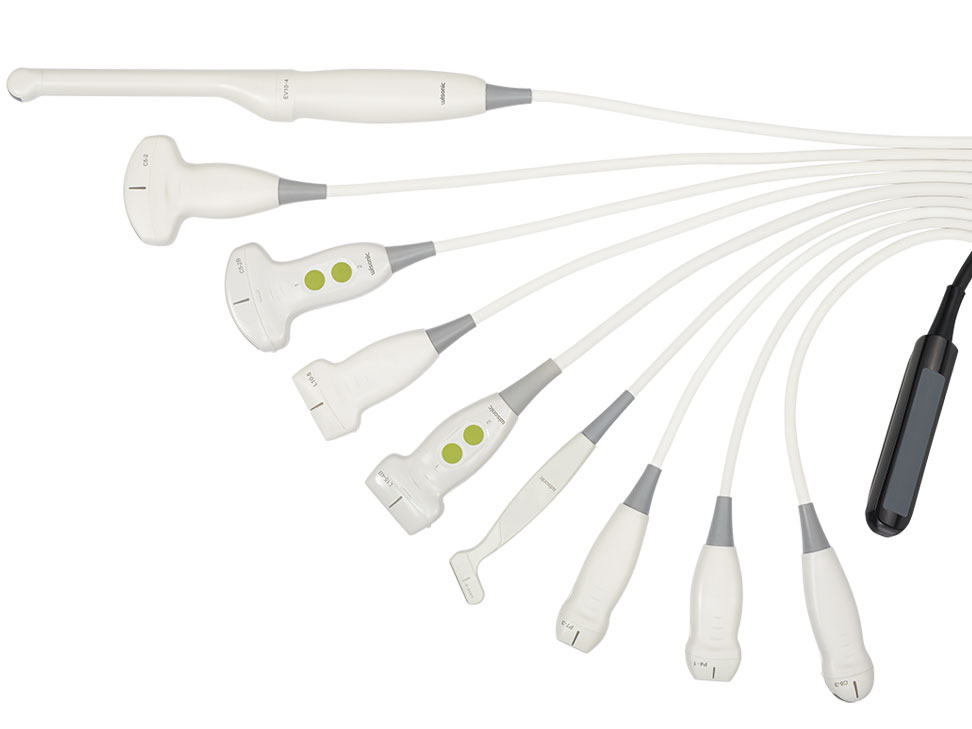

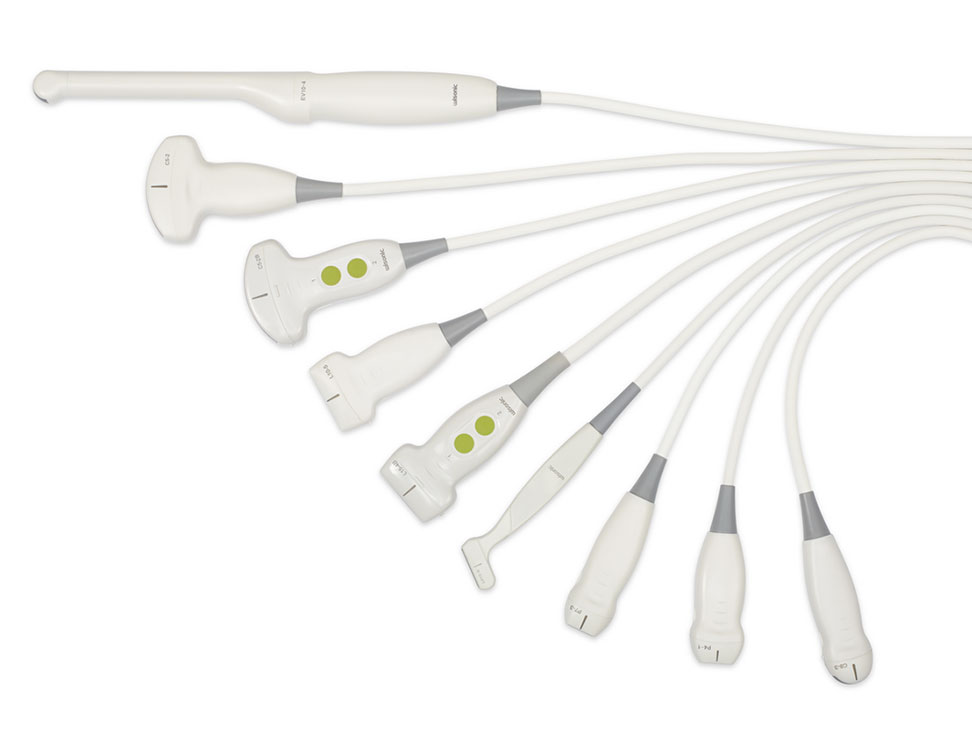

Probes cover all clinical applications

Dedicated Preset for MSK

Flexible Style, More Possibilities

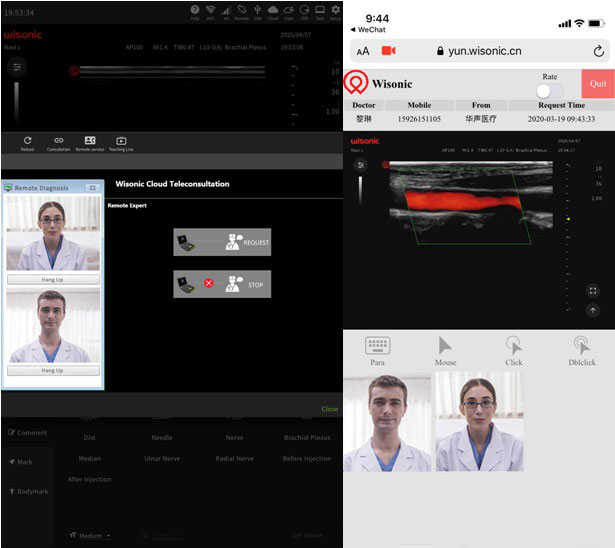

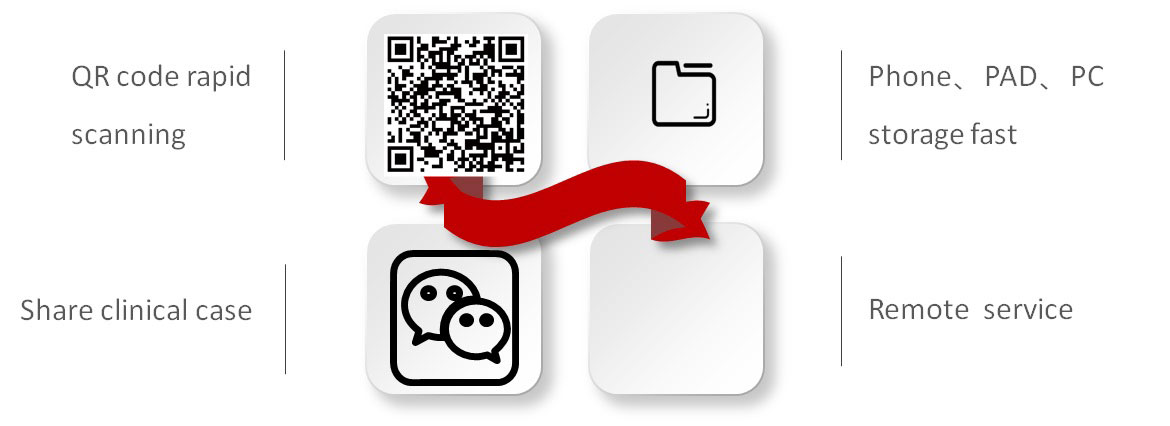

wiCloud

Remote Diagnosis

  • Real Time Teleconsultation
  • Face to Face in wiCloud

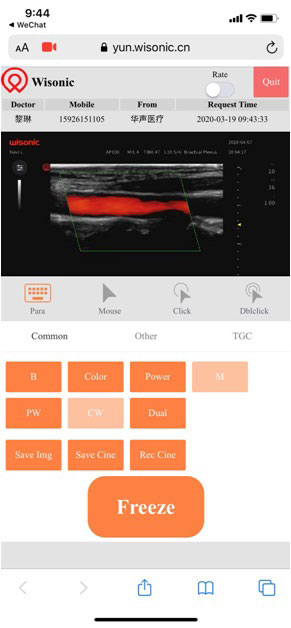

Remote Control

  • After sale engineers can adjust the image parameters check the malfunction by phone
  • Reduce maintenance costs

Summary

Industrial best-in-class image tablet ultrasound with only 1.9 kg , extremely portable

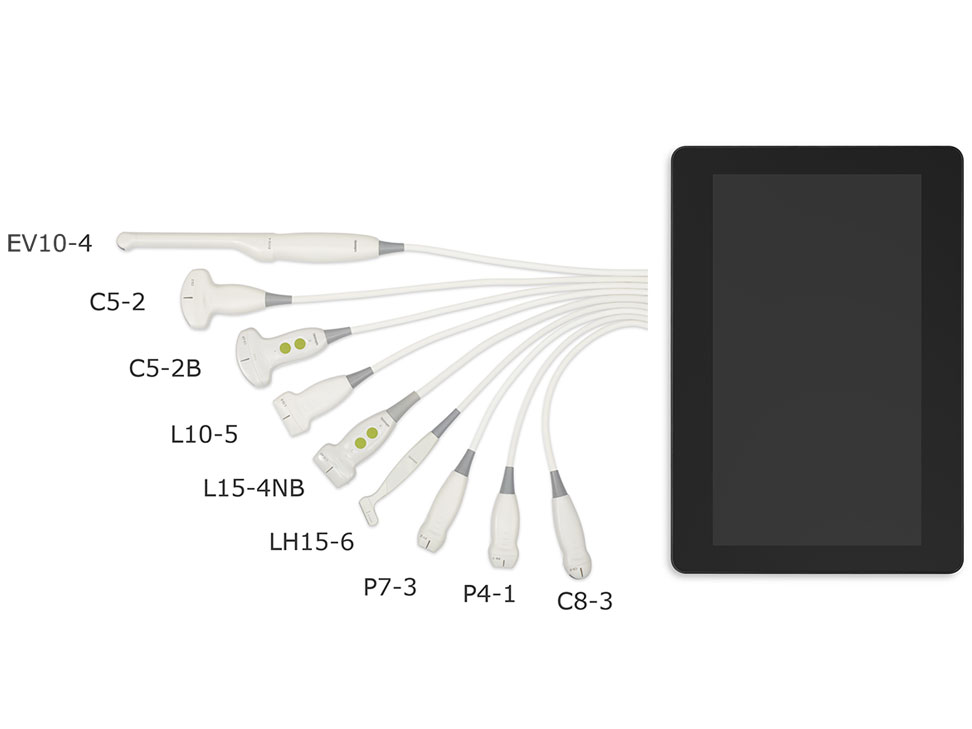

Piloter Series Probe Sheet

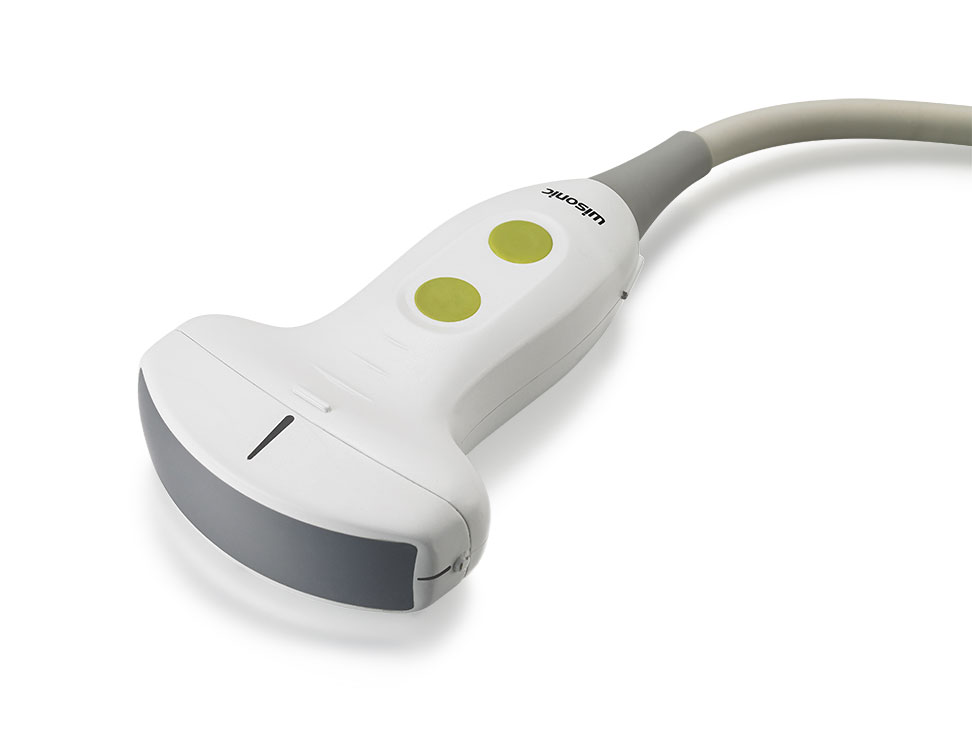

C5-2B
Application: Adult Abdomen, Ped-Abdomen, OB&GYN, Vascular, Nerve
Bandwidth: 2-5MHz
Radius: 50mm
Biopsy Guide: JSM-059, 20°, 27°, 37°, reusable

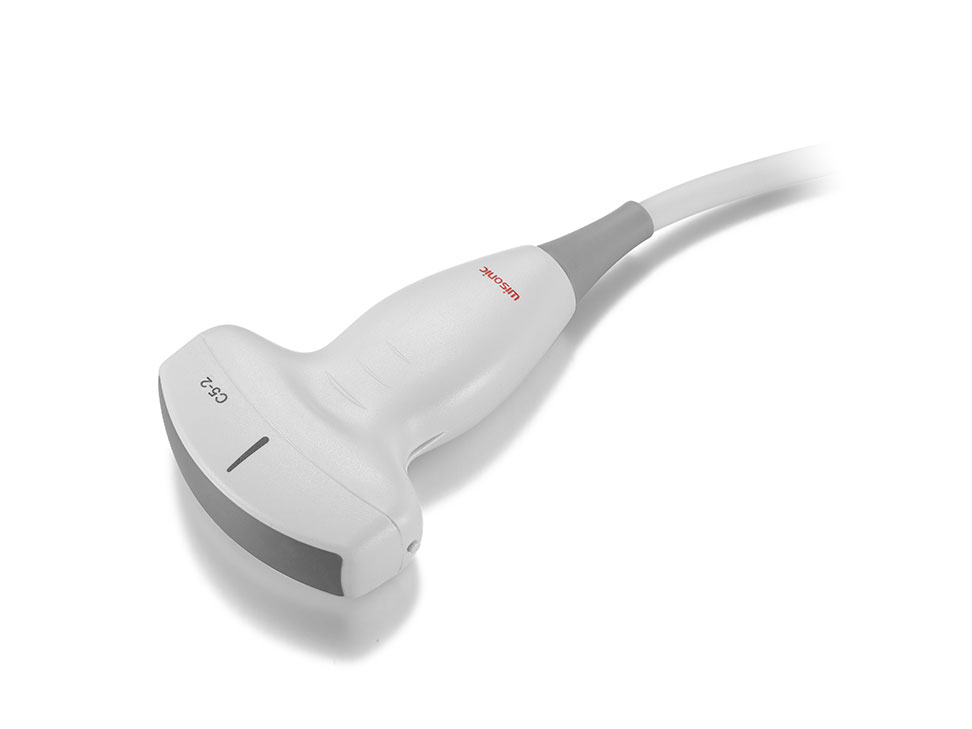

C5-2
Application: Adult Abdomen, Ped-Abdomen, OB&GYN, Vascular, Nerve
Bandwidth: 2-5MHz
Radius: 50mm
Biopsy Guide: JSM-050, 20°, 30°, 40°, reusable

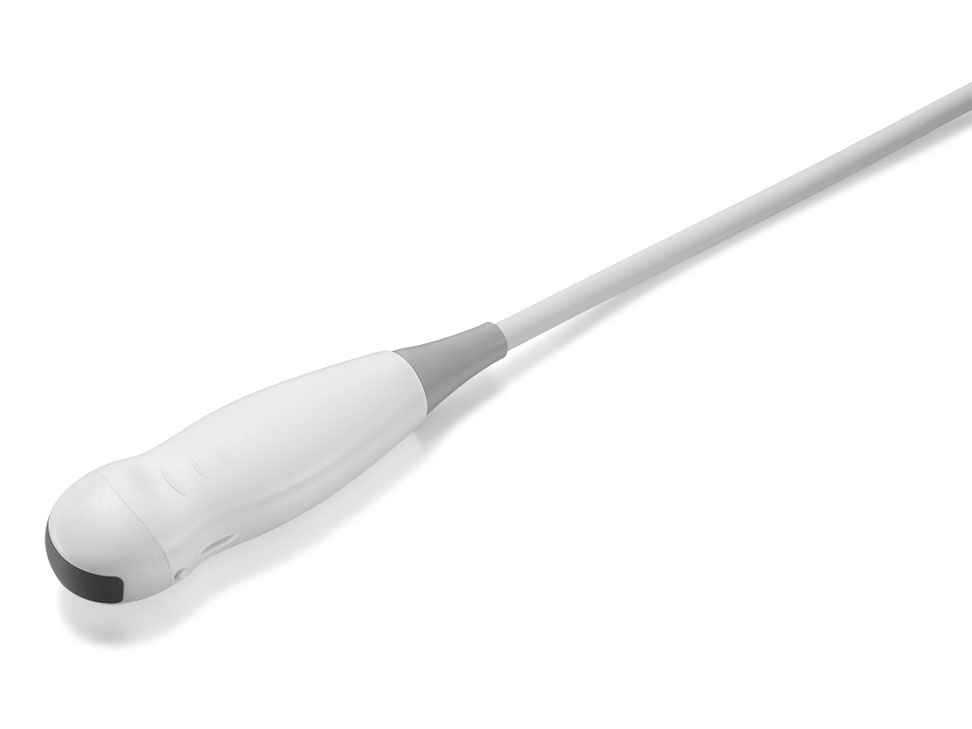

C8-3
Application: Ped-Abdomen, Ped-Cardiac, Neonatal head
Bandwidth: 3-8MHz
ExFOV: 112°
Biopsy Guide: Not available

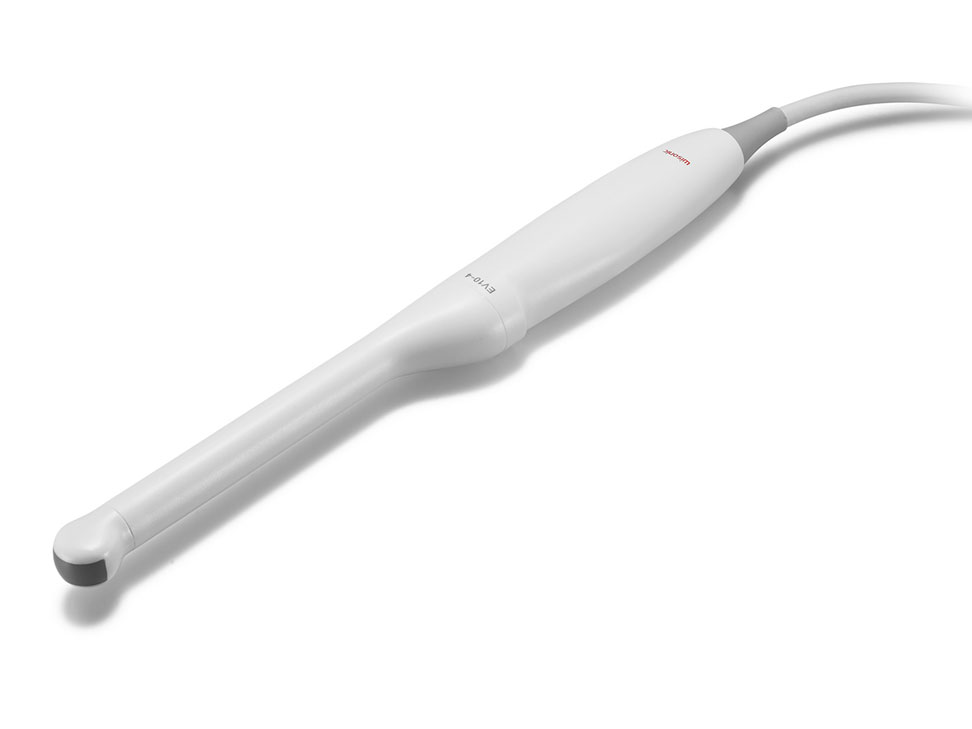

EV10-4
Application: OB&GYN, Urology
Bandwidth: 4-10MHz
Radius: 10mm
Biopsy Guide: JSM-028, Single Angle, reusable

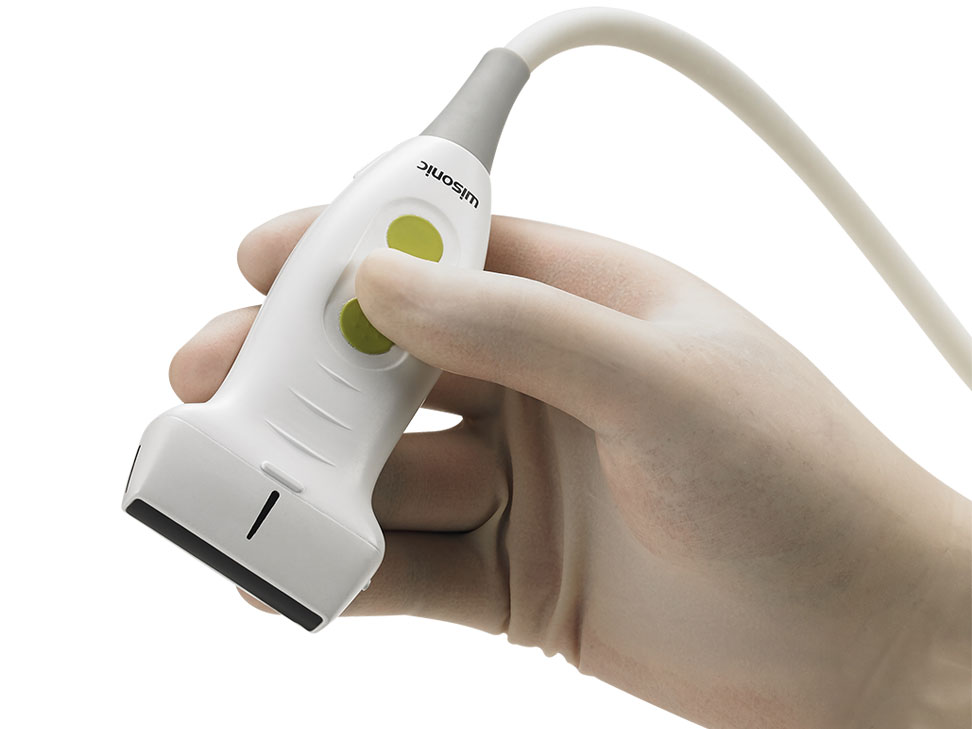

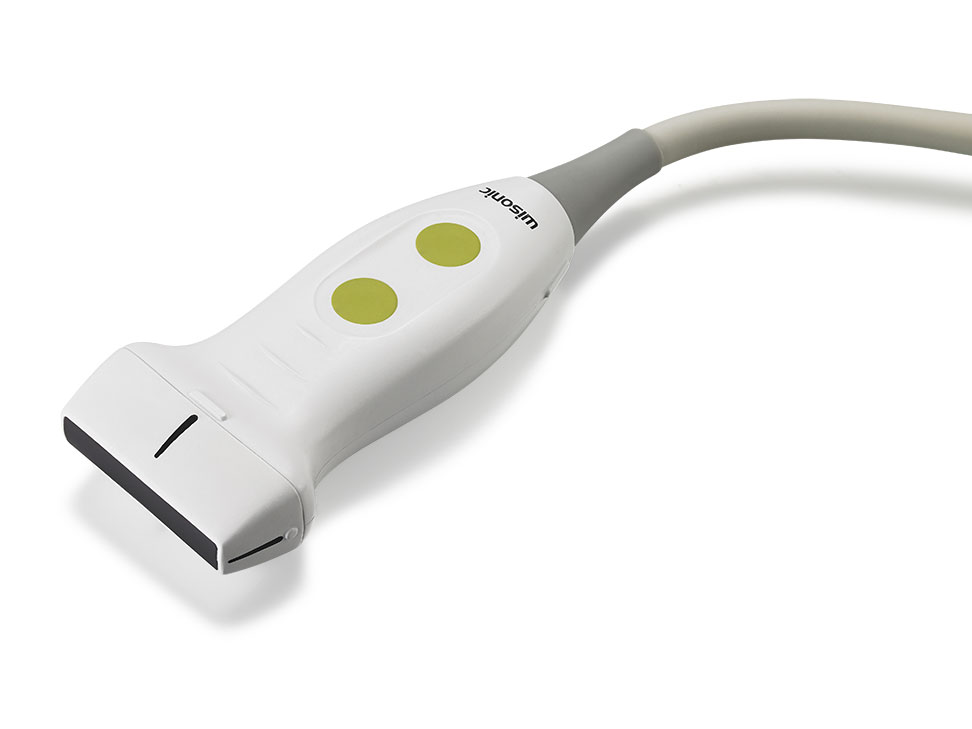

L15-4NB
Application: Small Parts, Vascular, MSK, Nerve, Pediatrics
wiGUide available
Bandwidth: 4-15MHz
FOV (Max): 38mm
Steer: +/-30°, 1°/increment
Biopsy Guide: JSM-040, 37°, 46°, 58° reusable

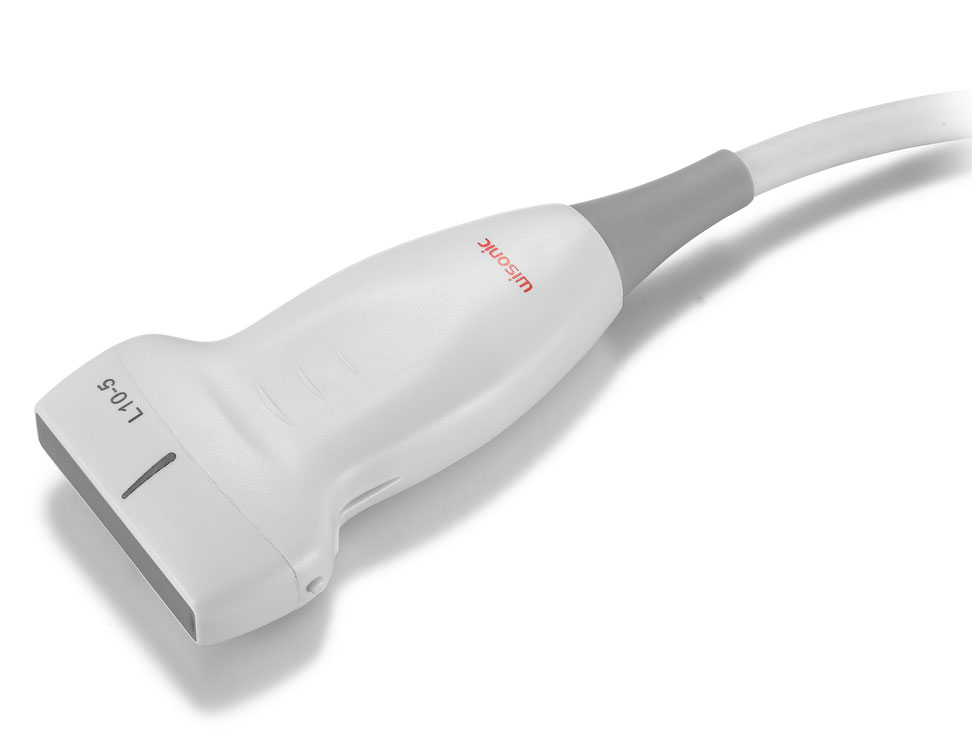

L10-5
Application: Small Parts, Vascular, MSK, Nerve
Bandwidth: 5-10MHz
FOV (Max): 38mm
Steer: +/-30°, 1°/increment
Biopsy Guide: JSM-032, 27°, 38°, 52°; JSP-021(Plastic), reusable

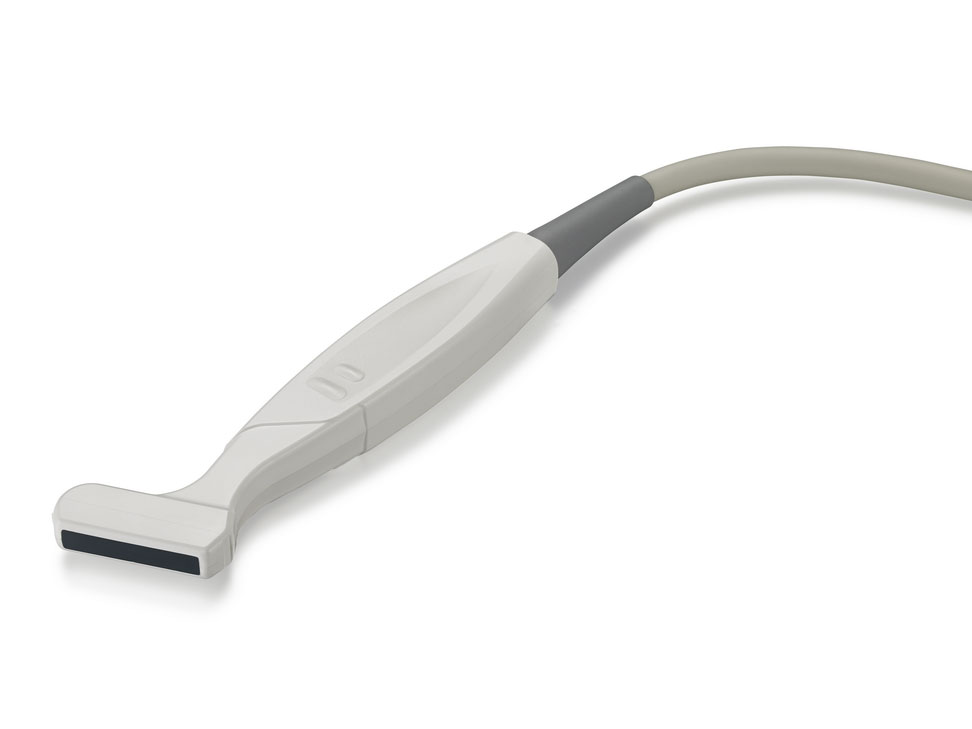

LH15-6
Application: Small Parts, Vascular, MSK, Nerve
Bandwidth: 6-15MHz
FOV: 26mm
Steer: +/-30°, 1°/increment
Biopsy Guide: Not available

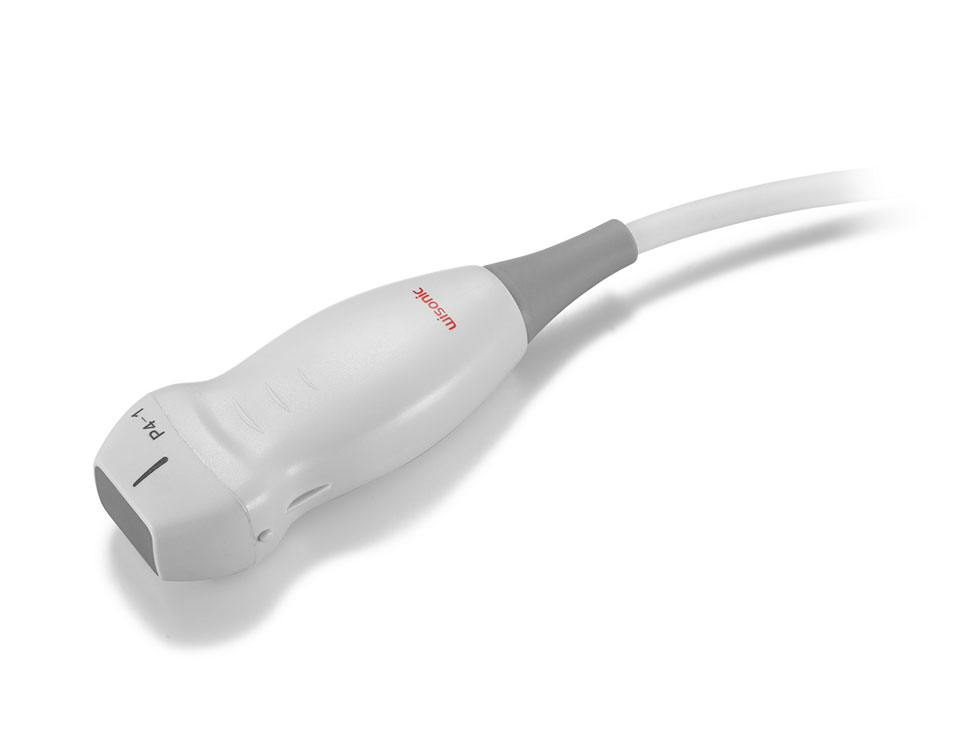

P4-1
Application: Adult Cardiac, Ped-Cardiac, TCD, Adult Abdomen
Bandwidth: 1-4MHz
FOV (Max): 90°
Biopsy Guide: JSM-020, 13°, 24°, reusable
P7-3
Application: Ped-Cardiac, Ped-Abdomen
Bandwidth: 3-7MHz
FOV (Max): 90°
Biopsy Guide: Not available
