Technical Specifications

ECG
  • Input dynamic range: ±0.4 ~ 5mVp
  • HR measuring range: 20 ~ 300bpm
  • HR measuring accuracy: ±1% or ±2bpm, whichever is greater
  • HR alarm delay time: ≤ 10s
  • Sensitivity selection:×1/2, ×1, ×2, tolerance: ≤5%
  • Sweeping speed: 12.5mm/s, 25mm/s, 50mm/s, tolerance: ≤10%
  • ECG noise level: ≤ 30μVP-P
  • ECG input loop current: ≤ 0.1μA
  • Input impedance: ≥ 5MΩ
  • Common-mode rejection ratio: ≥ 89dB
  • Time constant:
  • Monitoring mode: ≥ 0.3s
  • Diagnostic mode: ≥ 3.2s
  • Frequency response:
  • Monitoring mode: 0.5 ~ 40Hz
  • Diagnostic mode: 0.05 ~ 75Hz
RESP
  • Measuring range: 0rpm ~ 120rpm
  • Measuring Accuracy: ±5% or ±2rpm, whichever is greater
SpO2
  • Transducer: Dual-wave length LED
  • Measuring range: 0% ~100%
  • Measuring Accuracy: Arms not greater than 3% (70%~100%)
  • Low perfusion capability: As low as 0.4%
Pulse Rate
  • Measuring range: 30 ~ 240bpm
  • Measuring accuracy: ±2bpm or±2%, whichever is greater
TEMP
  • Measuring range: 15.0℃ ~ 45.0℃
  • Measuring accuracy: ±0.2℃
NIBP
  • Technique: Oscillometric
  • Cuff inflation time: < 30s (typical adult cuff)
  • Initial cuff inflation pressure:
  • Adult/Pediatric: 180mmHg
  • Neonate: 120mmHg
  • Overpressure protection limit:
  • Adult/Pediatric: 300mmHg
  • Neonate: 140mmHg
  • Measuring range:
  • Systolic pressure:
  • Adult and infant: 25mmHg~265mmHg
  • Neonate: 25mmHg~135mmHg
  • Diastolic pressure:
  • Adult and infant: 12mmHg~220mmHg
  • Neonate: 12mmHg~110mmHg
  • Mean arterial pressure:
  • Adult and infant: 18mmHg~245mmHg
  • Neonate: 18mmHg~120mmHg
  • Measurement precision: Systolic ±10%
  • Diastolic: ±10%
  • MAP: ±10%
  • Measurement mode: Manual, Auto, STAT
  • Automatic measuring intervals: 1~240min
  • Interval tolerance: < 10s
Others
  • Power supply: 100 ~ 250VAC, 50/60Hz
  • Built-in rechargeable battery: 4400mAh li-ion battery
  • Display mode: 12.1" TFT color LED
  • Alarm mode: Audible-visual alarm
  • Networking port: Ethernet port
Standard Configuration
  • ECG, RESP, SpO2, NIBP, TEMP, PR
Standard Configuration
  • IBP, EtCO2, Built-in printer, Nellcor SpO2, Trolley, Wall-mount,
  • Central monitoring system, Touch screen

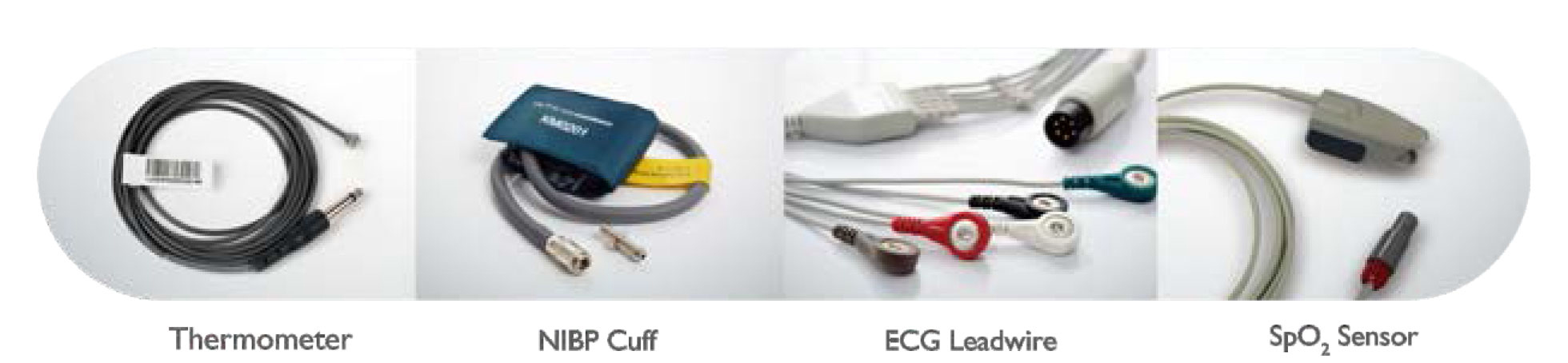

Accessories

Features

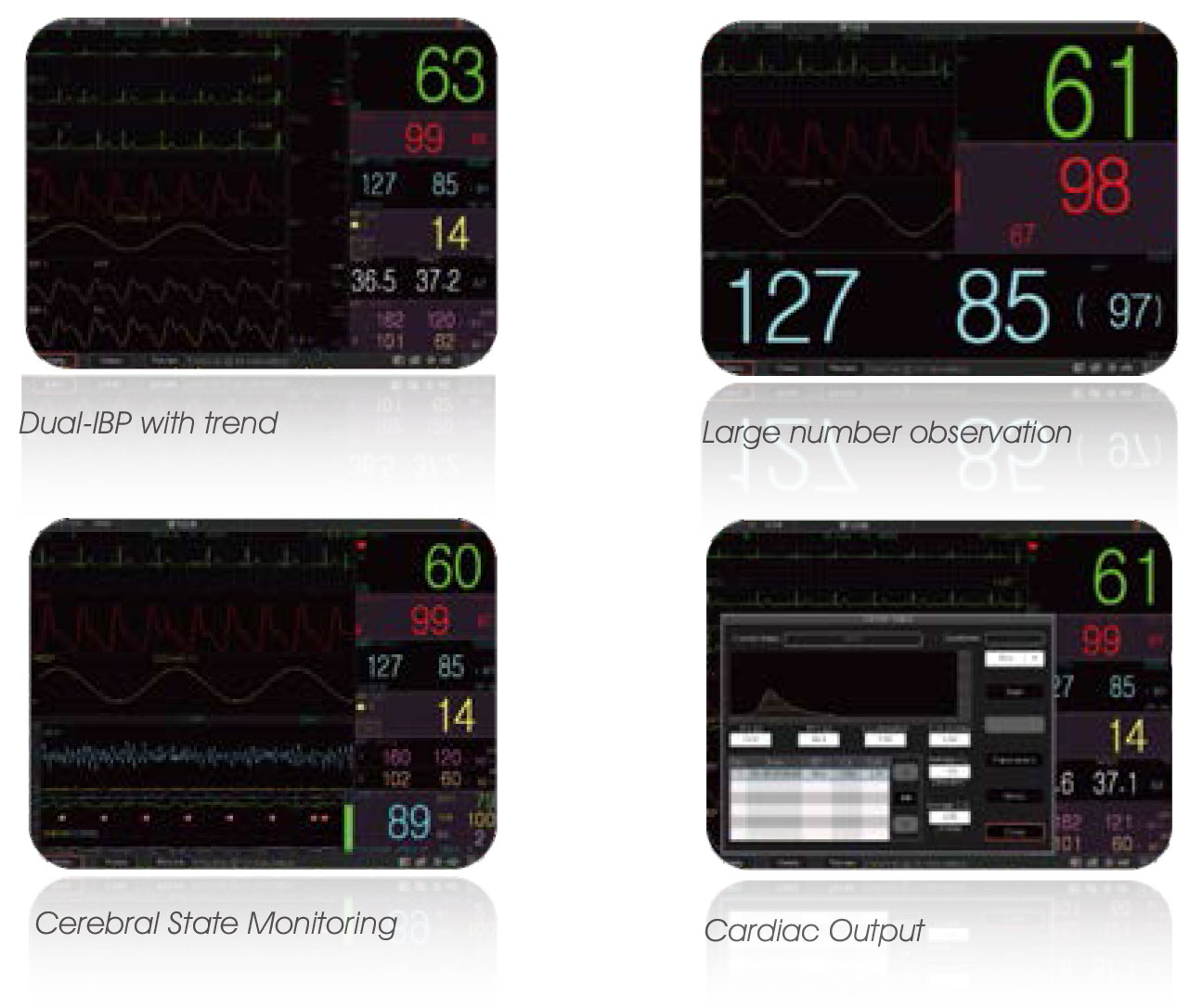

  • 12.1'' high resolution color LED display
  • Arrhythmia and ST segment analysis
  • Up to 800 groups data record storage
  • 24-hour ECG waveform data storage and recall
  • 480-hour data trends for all parameters with graphic and tabular view
  • 7 ECG lead waveforms simultaneously display
  • Protection against defibrillator interference
  • Adult / Pediatric measurement modes
  • Visual and audible alarms
  • Networking capability
  • Touch screen optional
  • Built-in 4400mAh li-ion battery
