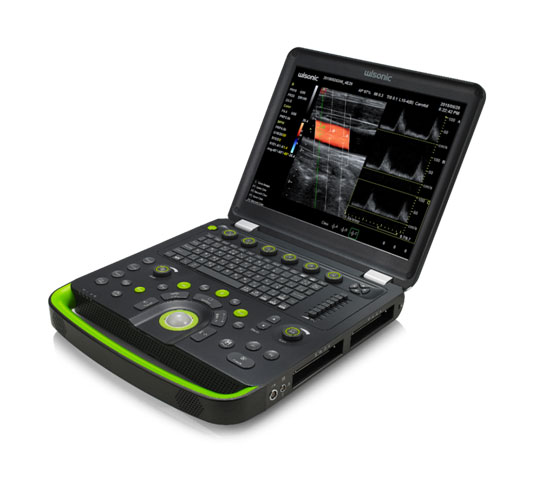

Clover Introduction

Clover Series
Affordable Excellence for All

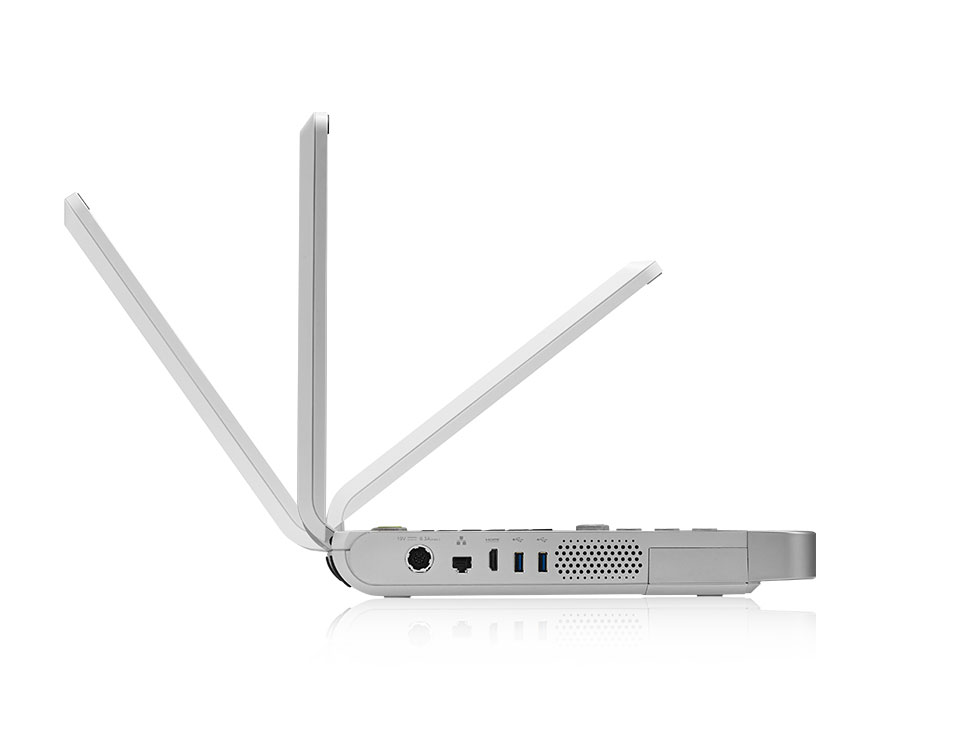

Smart Design

4.9kg with 2 Transducer Ports

  • Super light weight, easy to carry away
  • Connect 2 transducer simultaneously, reduce frequency of changing probes

Mg-Al Alloy Case

  • Durable, and reduces electromagnetic interference

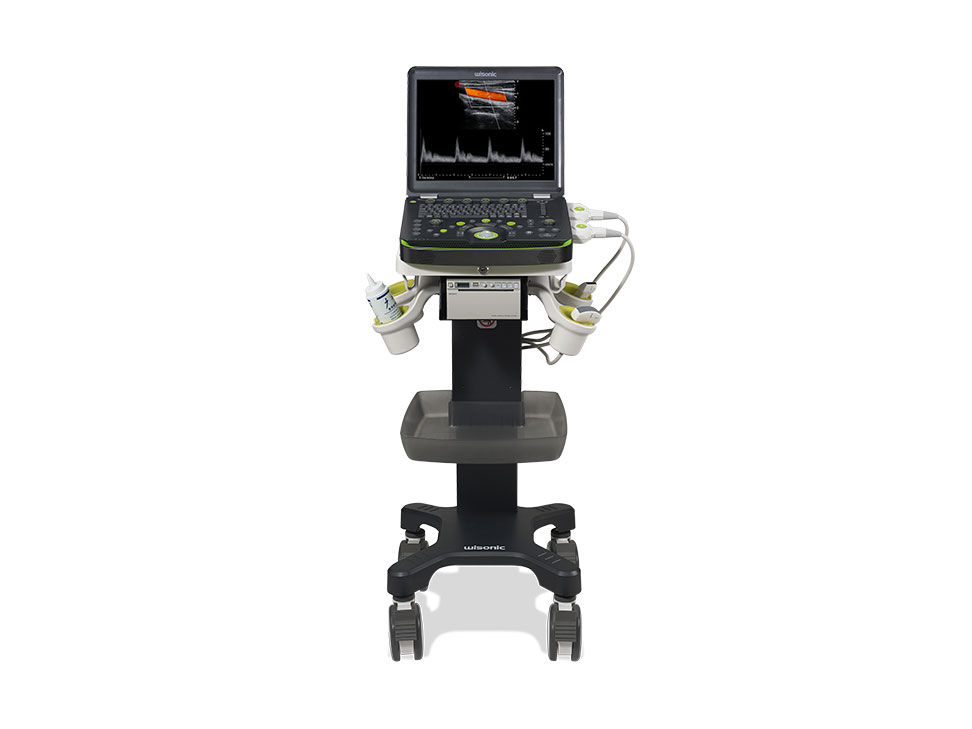

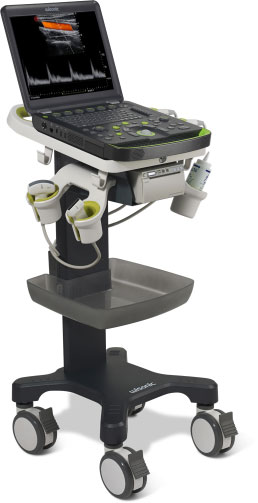

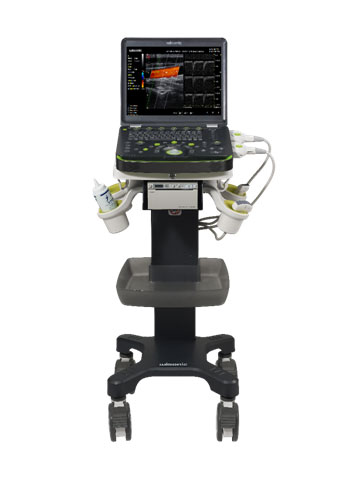

Ergonomic Trolley

Built-in Lock

  • Safe, anti-theft design

200mm Height Range

  • Easy to adjust to a standing or sitting position

Suitcase

Case

  • Durable materials, anti-scrape design

Locker

  • Safe with number lock, anti-theft

Size

  • Convenient to take around, easy to take on-board

Advanced Feature

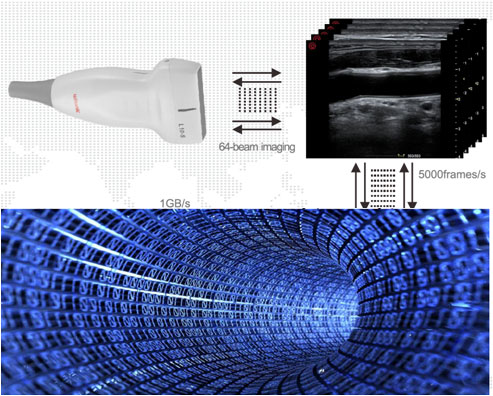

Holo™ Platform

Cutting-edge Platform

  • Parallel beam transmitting and receiving
  • Raw data processing
  • Better image quality and fast frame rate for accurate diagnosis

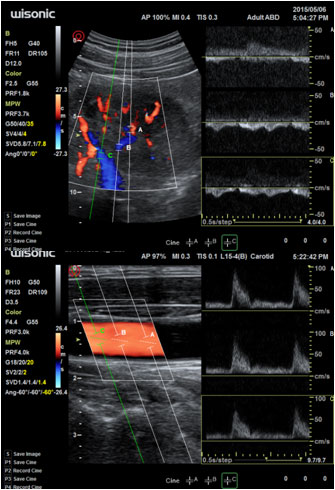

Holo™ PW

Max 3 Sample Gates

  • Evaluate 3 positions in one heart-cycle.
  • Measure across spectrum in same phase
  • Available on convex and linear
  • More accurate and efficient

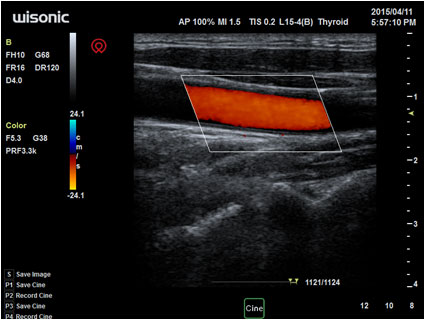

Ultra-Wide Accurate Steer Imaging

Ultra Wide Angle

  • Max 30°, with 1°per step
  • Accurate matching human blood vessels path. Obtaining more stronger Doppler signal, getting better spectrum and blood flow images

Auto Doppler

One Button Auto Doppler

  • Auto adjust ROI pos & angle, PW sample gate pos, angle and size.
  • Apply to vascular exams
  • Easy to use, save time

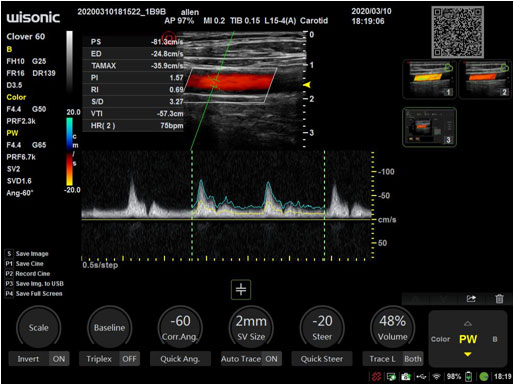

Auto Trace

Real-time Auto Trace

  • Full trace parameters package
  • Auto volume flow
  • Max and mean trace lines
  • Accurate and robust result

IMT

Auto IMT

  • Near wall and far wall
  • Angle selectable
  • Fast and accurate result

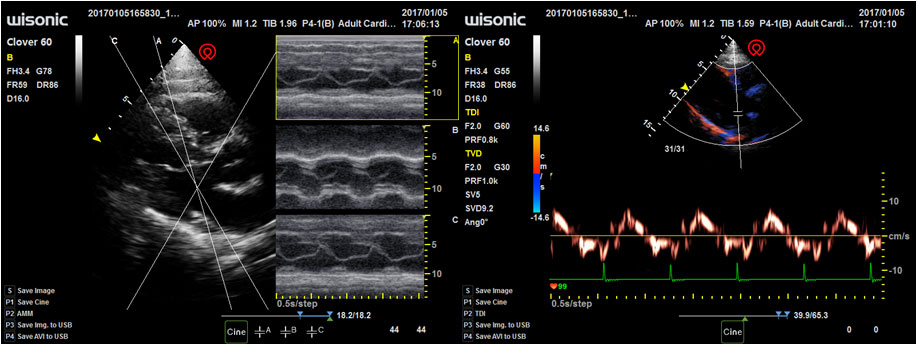

TDI, Anatomic M

4D

wiNeedle

Intelligent Needle Enhancement

  • Auto beam steering
  • Less interaction with system, keep hand sterile

wiLearn

Education Center

  • Full range of POC application package
  • Shorten time of learning

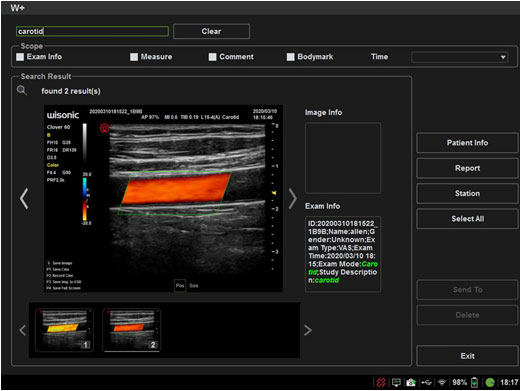

W+

Intelligent Search

  • Input key words to search
  • Easy to search information , includes patient info, comments, body mark, measurement

FZoom

Full Screen Zoom

  • One key to zoom
  • Large and clear view cross beds

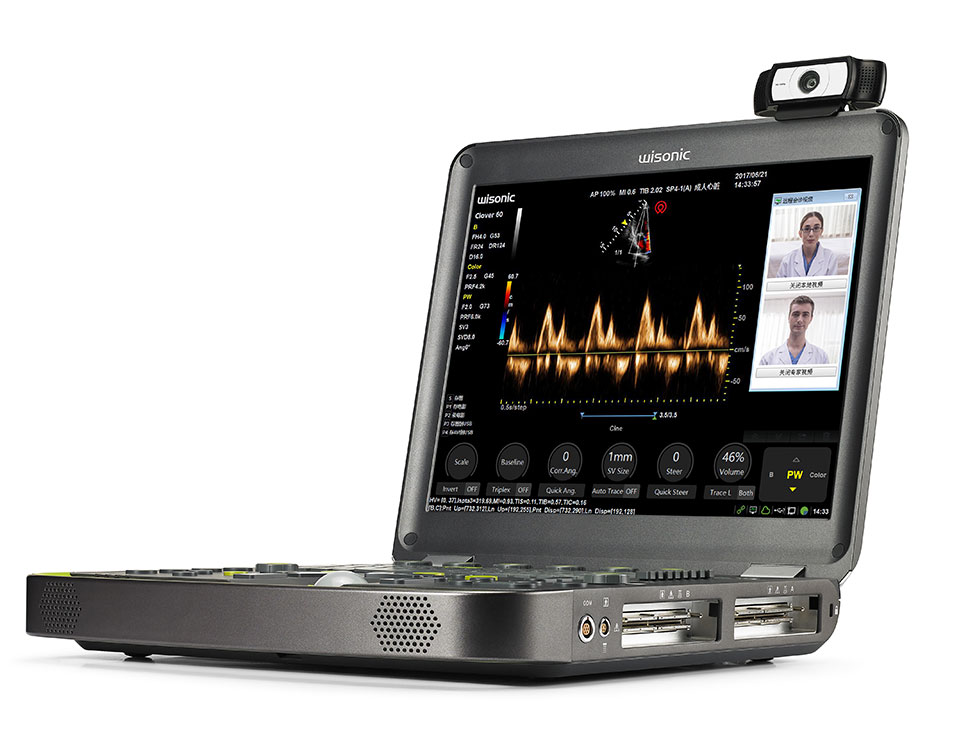

wiCloud

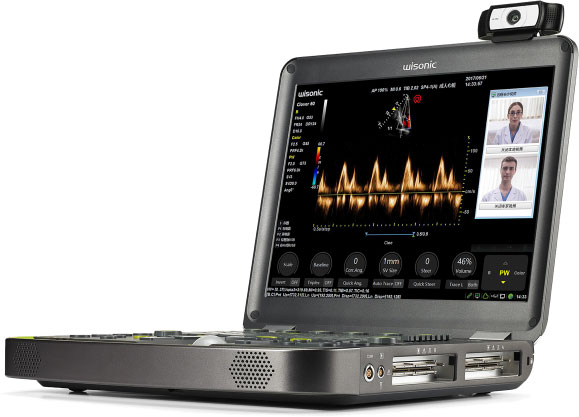

The world first internet based laptop ultrasound supports remote diagnosis and real-time teleconsultation with images, audio and video.

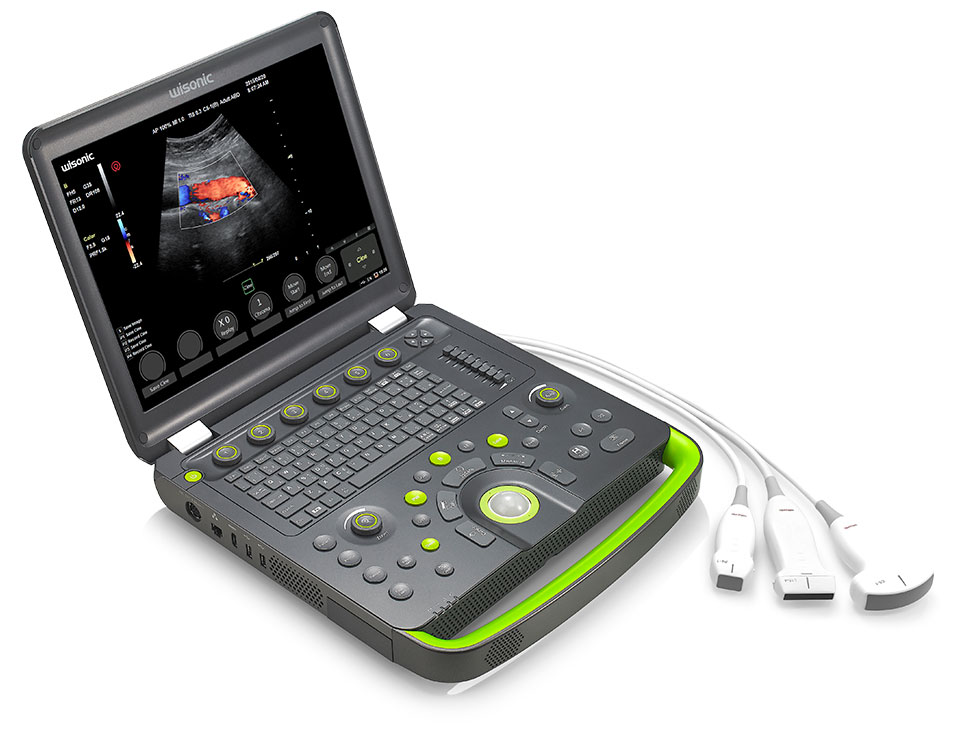

Lightest dual probe connectors portable ultrasound

4.9kg with battery

Spatial-Time Speckle Reduction Technology

Bigger data analysis based on both spatial and time spatial and time dimensions, realizing precise noise reduction, improving signal-to-noise ratio and achieving excellent images

Before

After

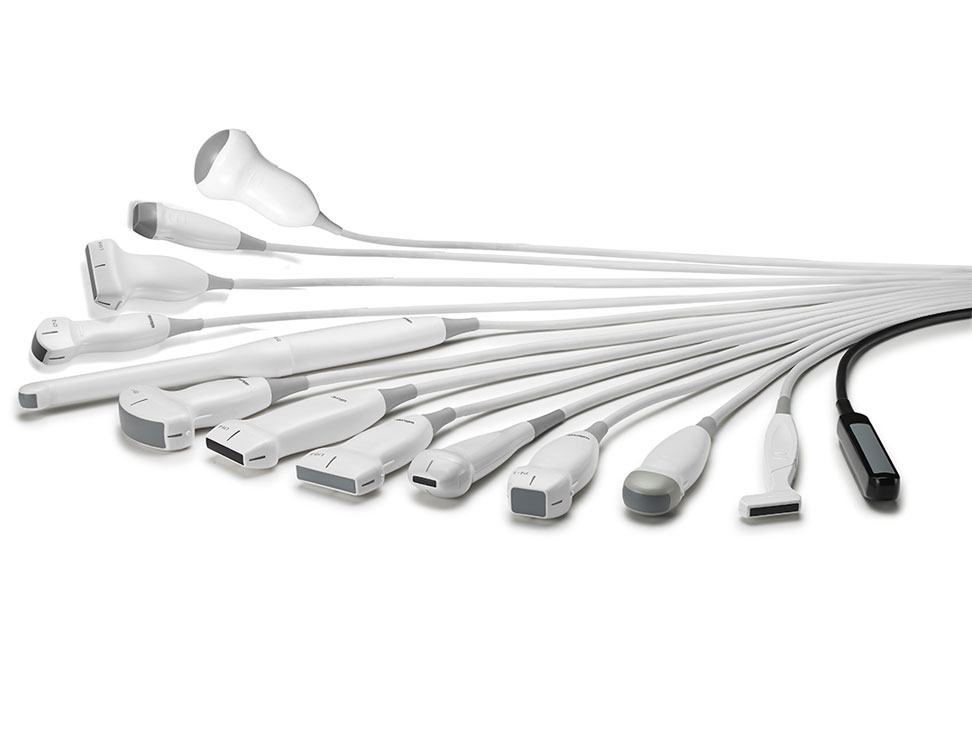

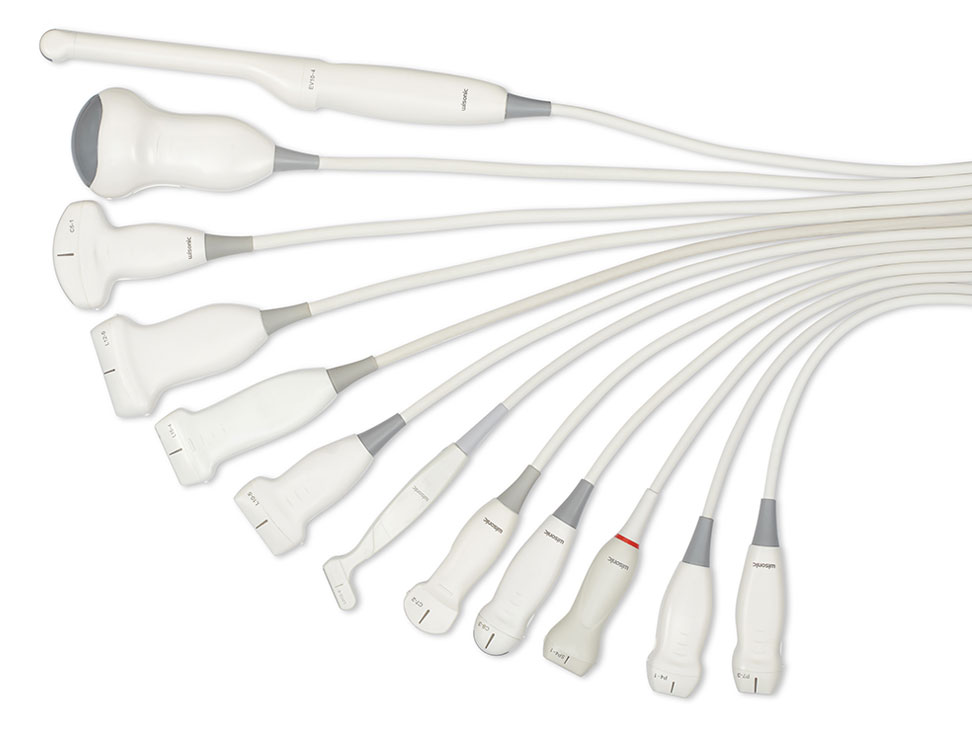

Well-prepared Transducer Group

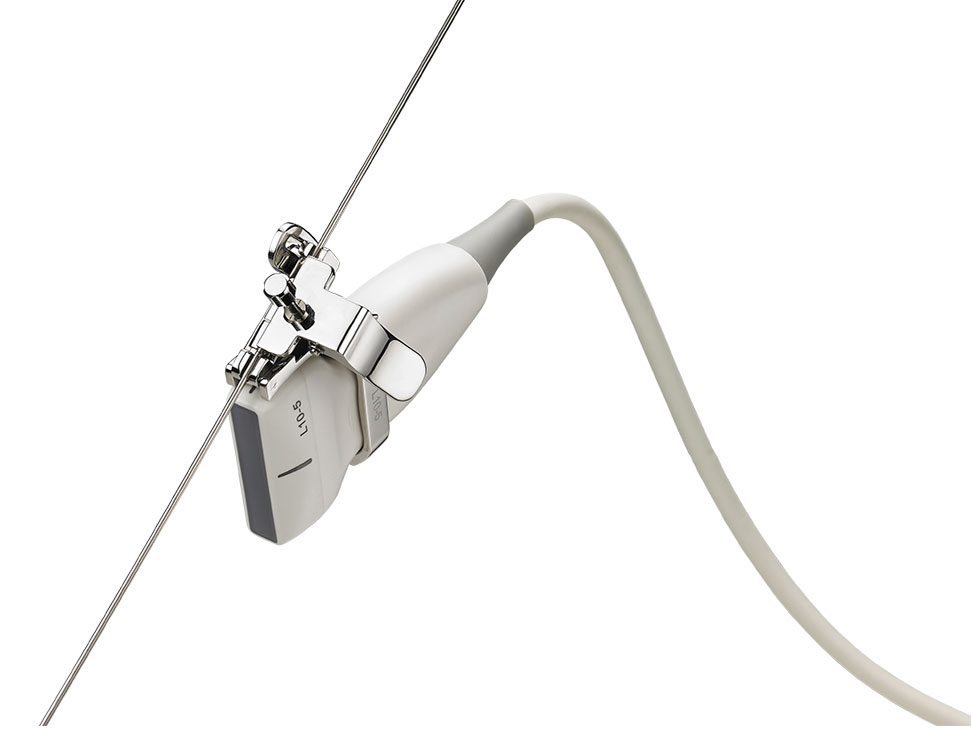

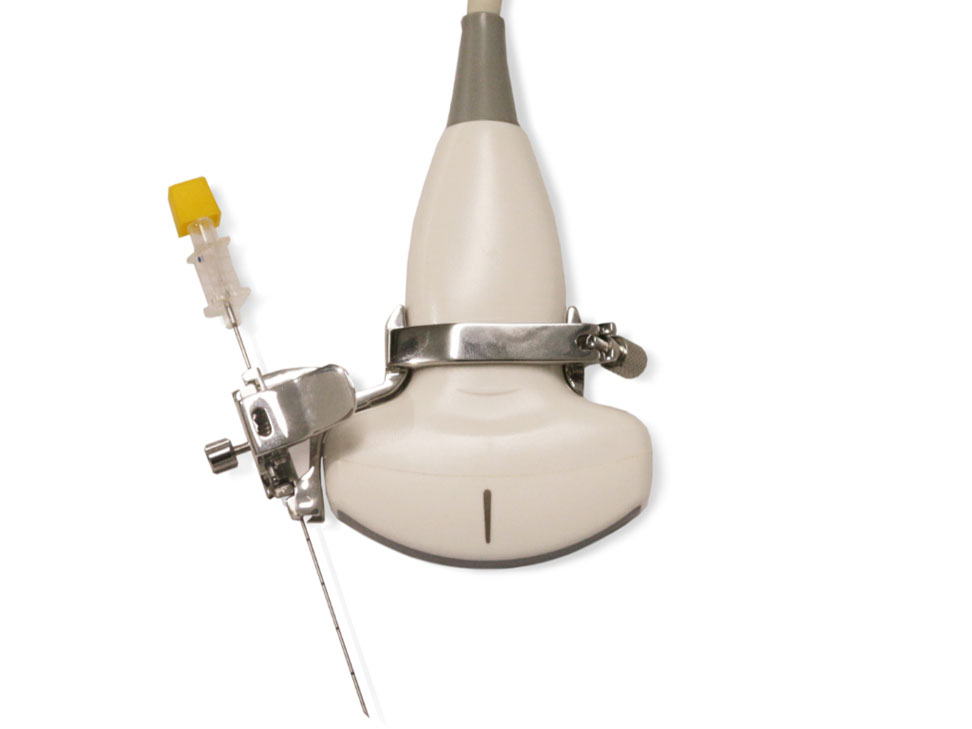

Clover provides a full range of transducers for all parts of children or adults, providing a more comprehensive diagnostic solution. The user-friendly median line design makes it easy for doctors to accurately position the needle during out of plane puncture.

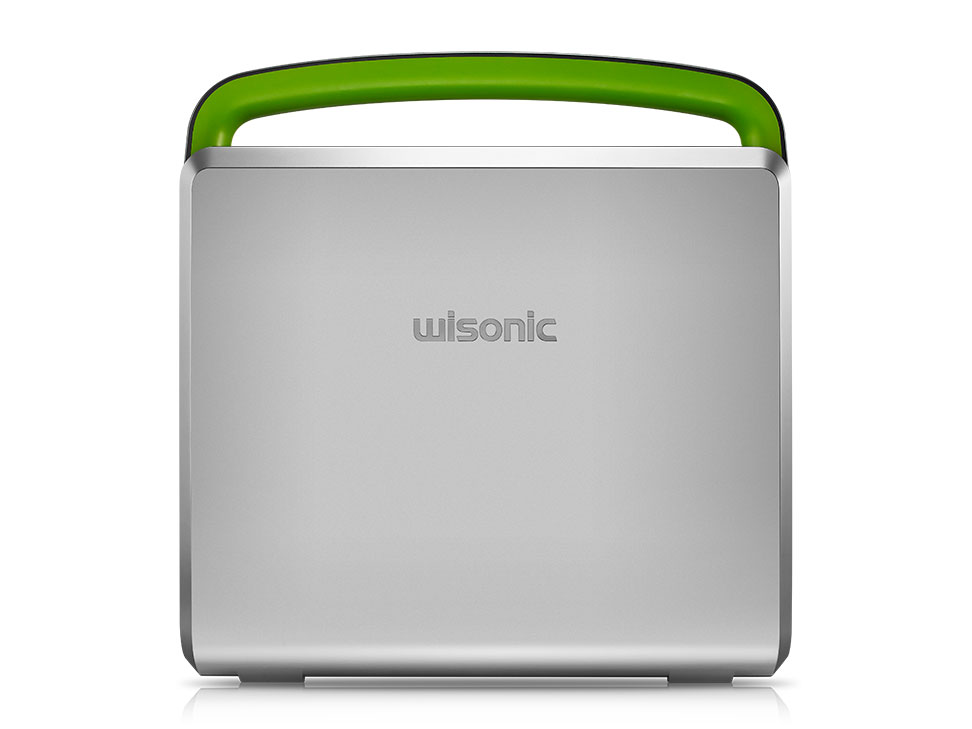

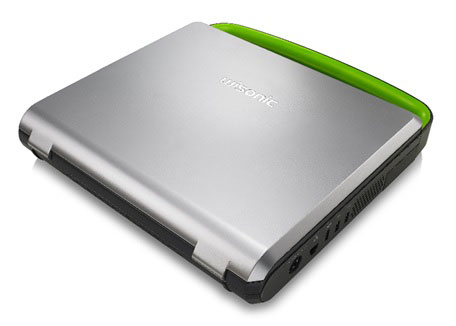

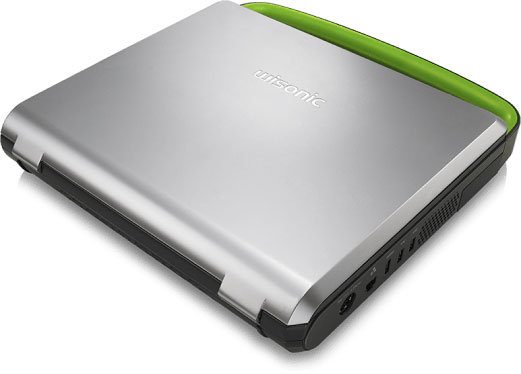

Durable Magnalium Alloy Body

The high-strength magnesium-aluminum alloy Shell is sturdy and durable, escorting every bedside diagnosis.

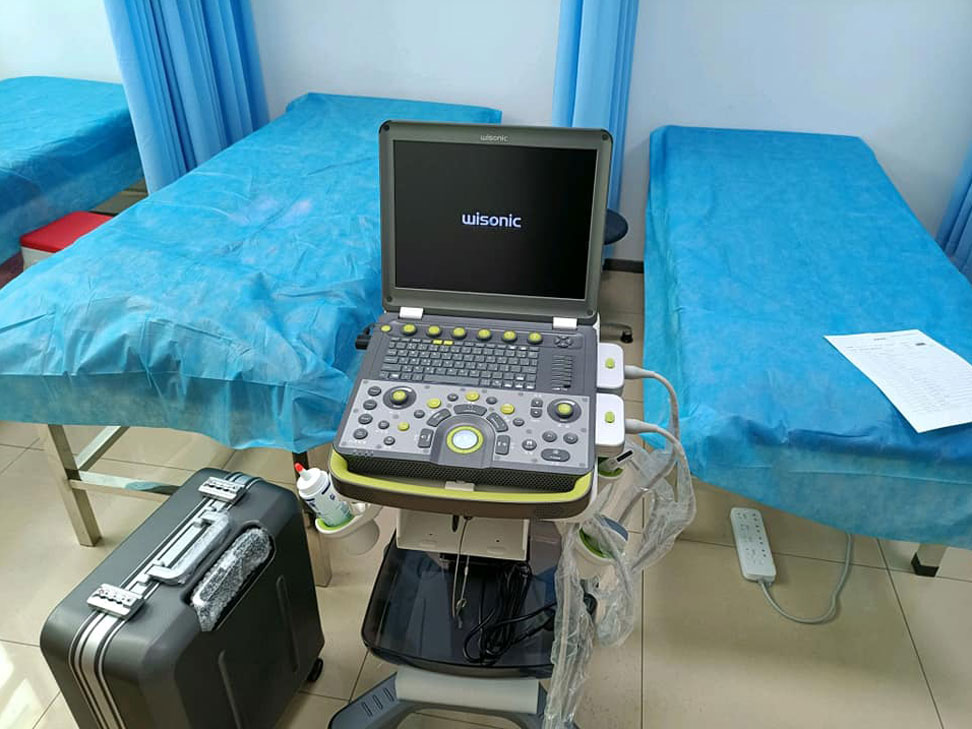

Dedicated Trolley and Suitcase

Extreme mobility meets the needs for different clinical scenarios


Clover Series Probe Sheet

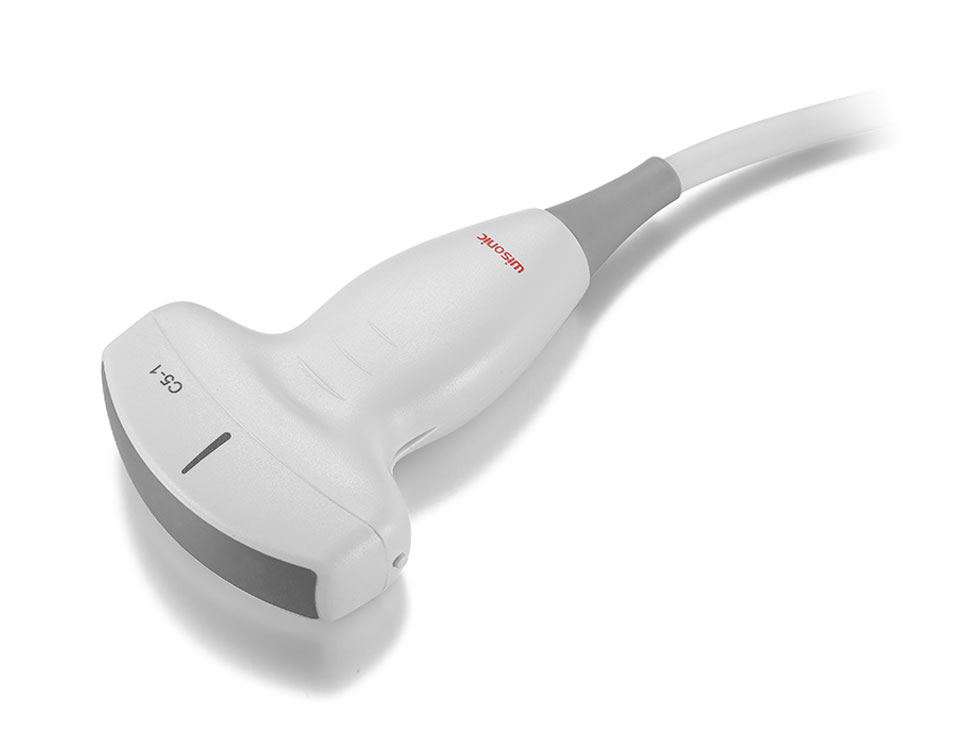

C5-1
Application: Adult Abdomen, Ped-Abdomen, OB&GYN, Vascular, Nerve
Bandwidth: 1-5MHz
FOV (Max): 54°
ExFOV: 70°
Biopsy Guide: JSM-050, 20°, 30°, 40°, reusable

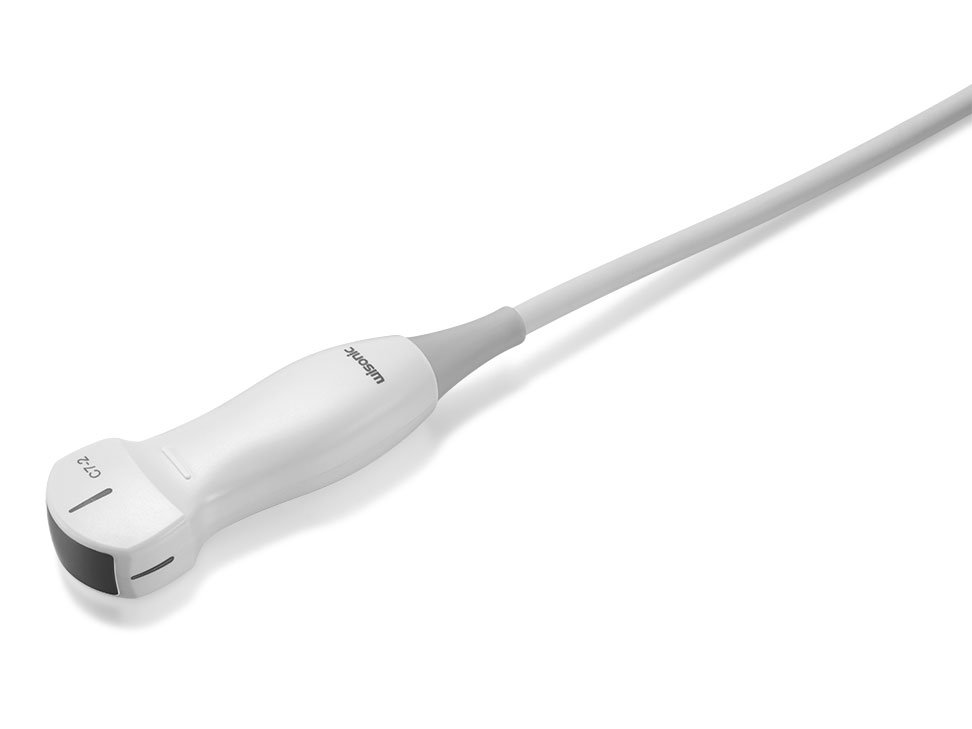

C7-2
Application: Adult Abdomen, Ped-Abdomen, OB&GYN, Vascular, Nerve
Bandwidth: 2-7MHz
FOV (Max): 72°
ExFOV: 80°
Biopsy Guide: Not available

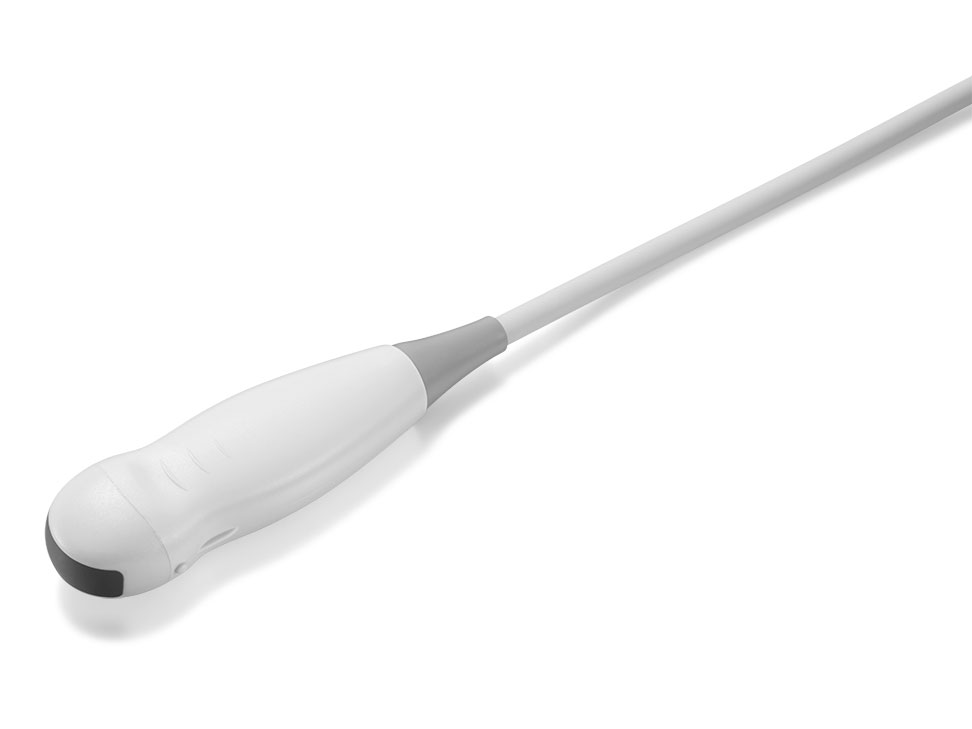

C8-3
Application: Adult Abdomen, Ped-Abdomen, Neonatal head
Bandwidth: 3-8MHz
FOV (Max): 92°
ExFOV: 112°
Biopsy Guide: Not available

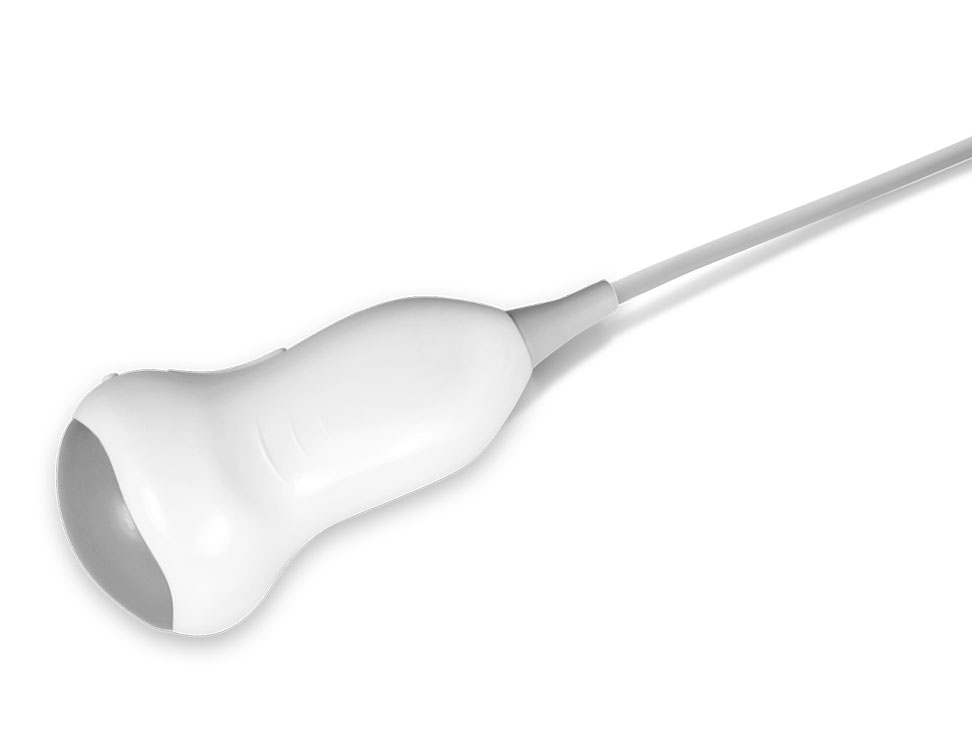

D7-2
Application: Adult Abdomen, OB&GYN, Nerve
Bandwidth: 2-7MHz
FOV (Max): 84° * 70° (sweep)
Biopsy Guide: Not available

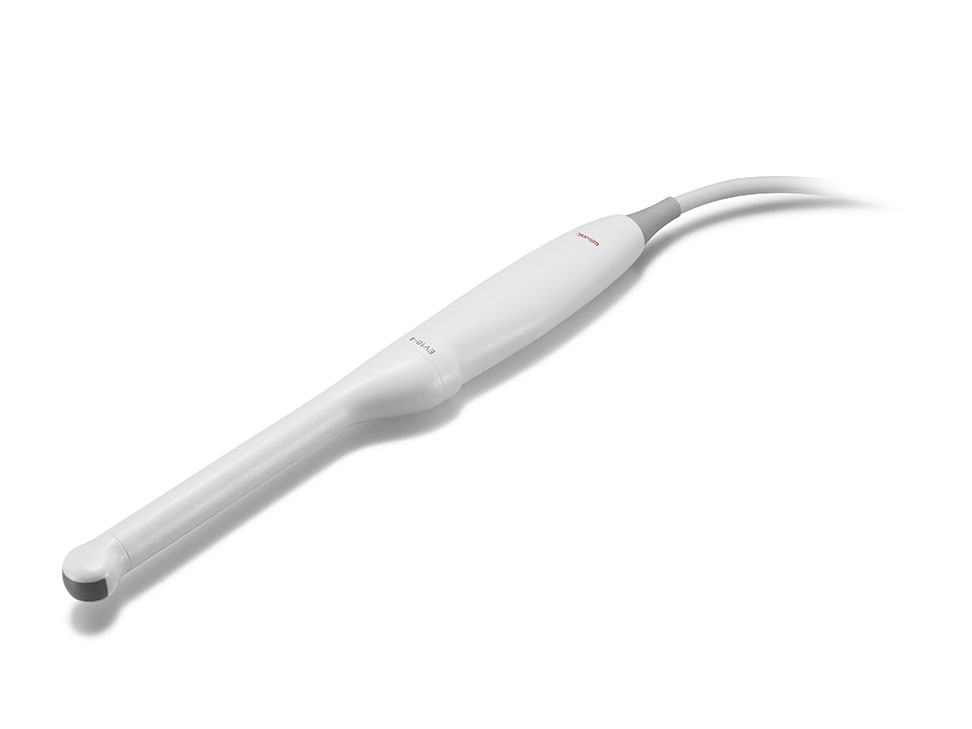

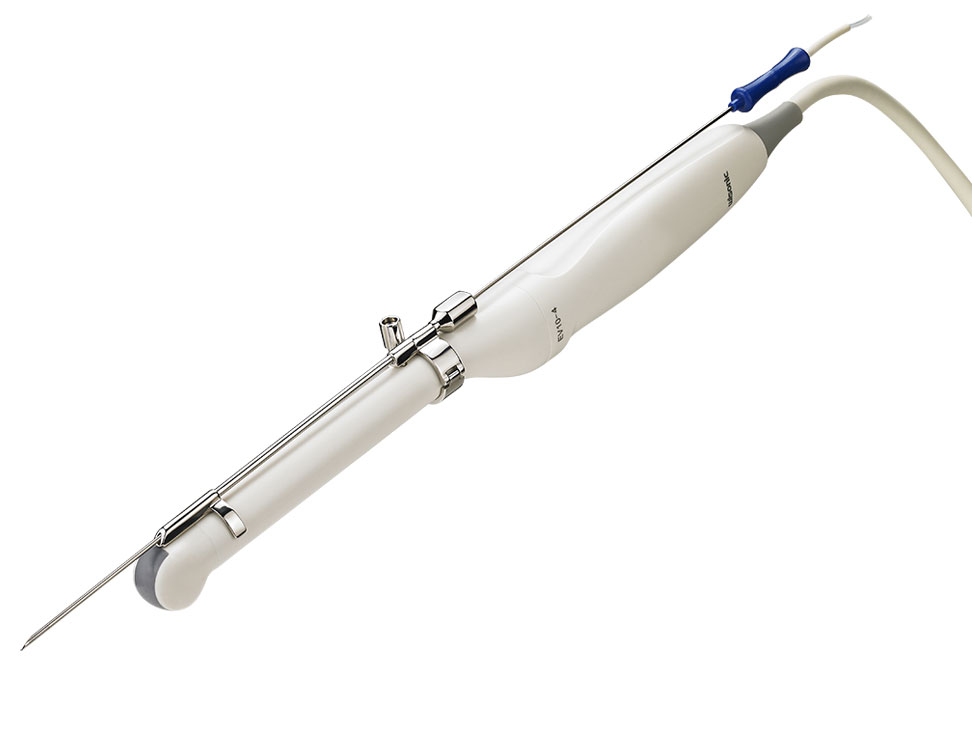

EV10-4
Application: OB&GYN, Urology
Bandwidth: 4-10MHz
FOV (Max): 150°
ExFOV: 169°
Biopsy Guide: JSM-028, Single Angle, reusable

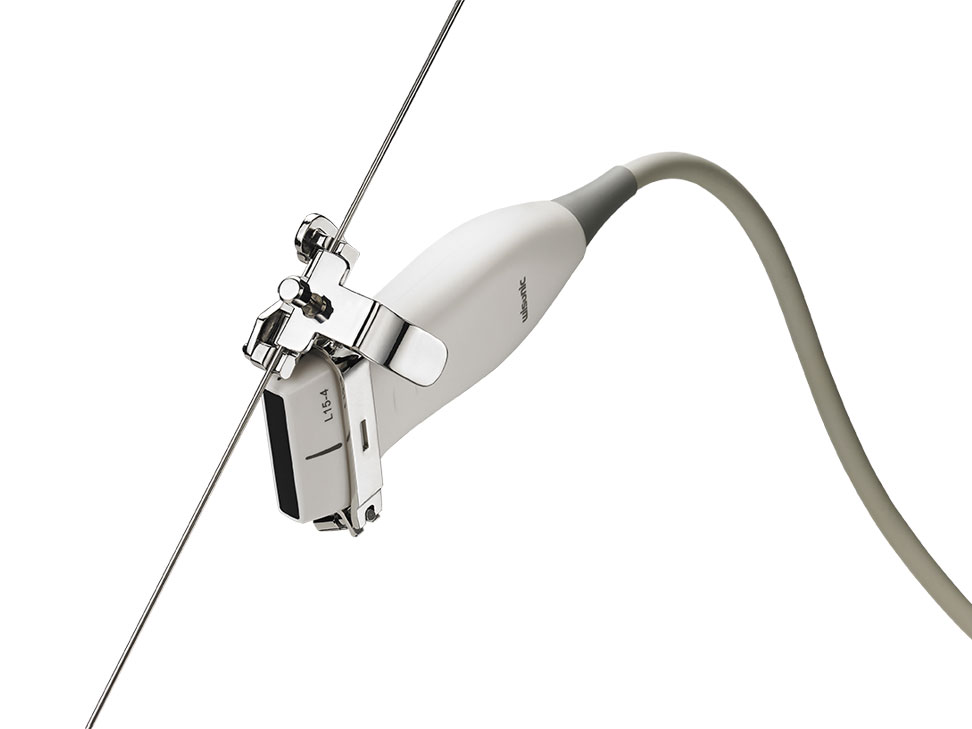

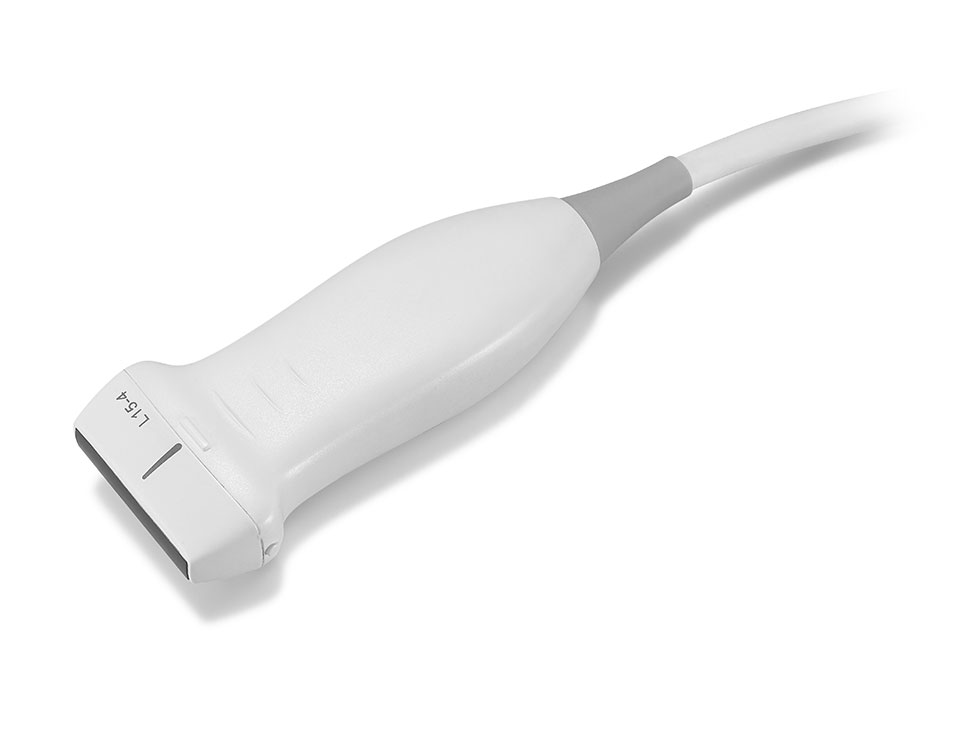

L15-4
Application: Small Parts, Vascular, MSK, Nerve, Pediatrics
Bandwidth: 4-15MHz
FOV (Max): 38mm
Steer: +/-30°, 1°/increment
Biopsy Guide: JSM-041, 37°, 46°, 58° reusable

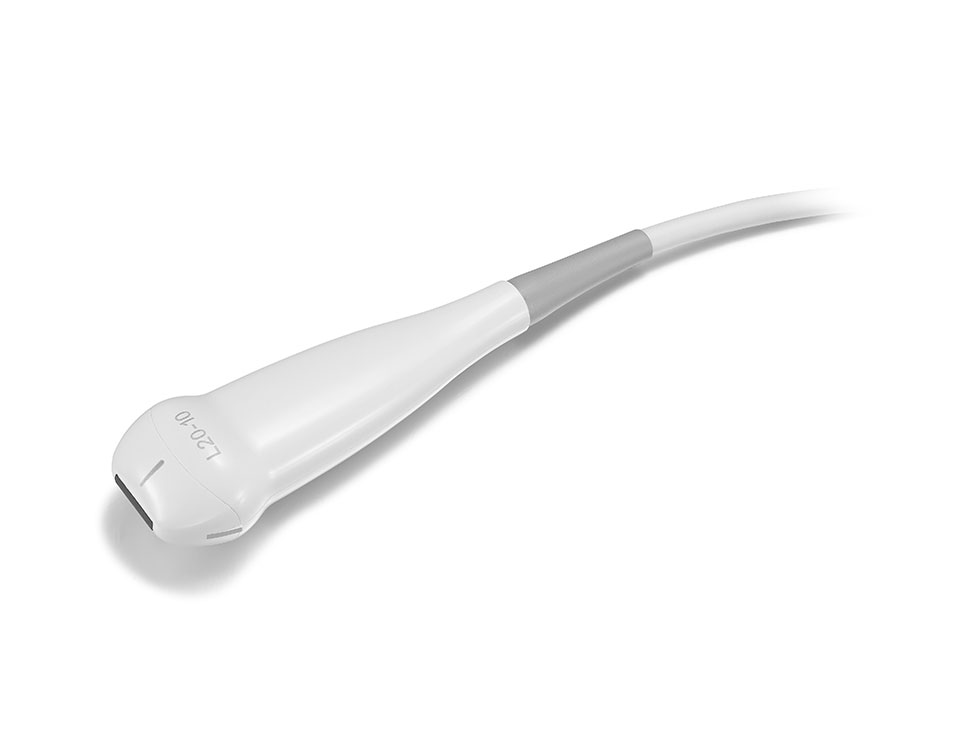

L20-10
Application: Vascular, MSK, Nerve, Superficial, Skin
Bandwidth: 10-20MHz
FOV (Max): 12.8mm
Steer: +/-30°, 1°/increment
Biopsy Guide: Not available

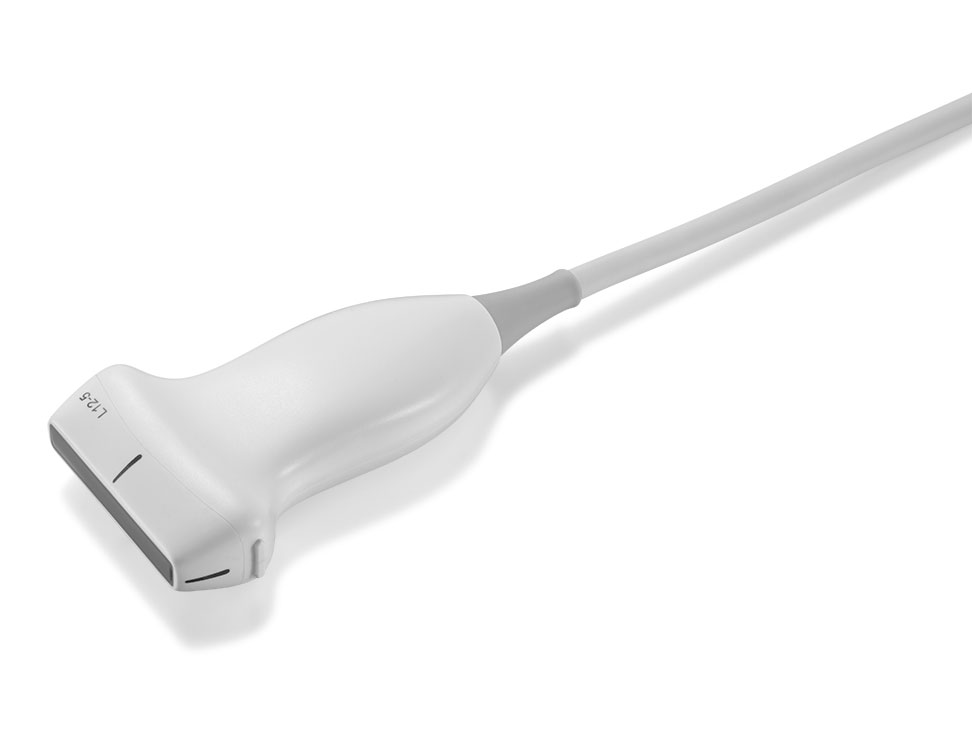

L12-5
Application: Breast, Small Parts, Vascular, MSK, Nerve
Bandwidth: 5-12MHz
FOV (Max): 48mm
Steer: +/-30°, 1°/increment
Biopsy Guide: Not available
LH15-6
Application: Small Parts, Vascular, MSK, Nerve
Bandwidth: 6-15MHz
FOV (Max): 26mm
Steer: +/-30°, 1°/increment
Biopsy Guide: Not available

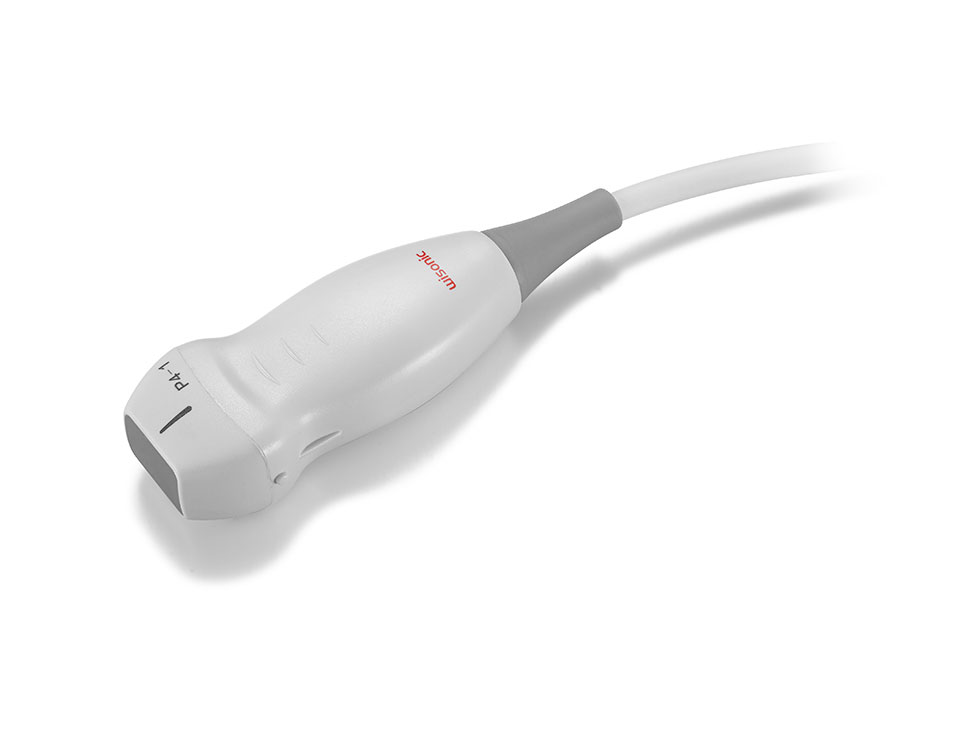

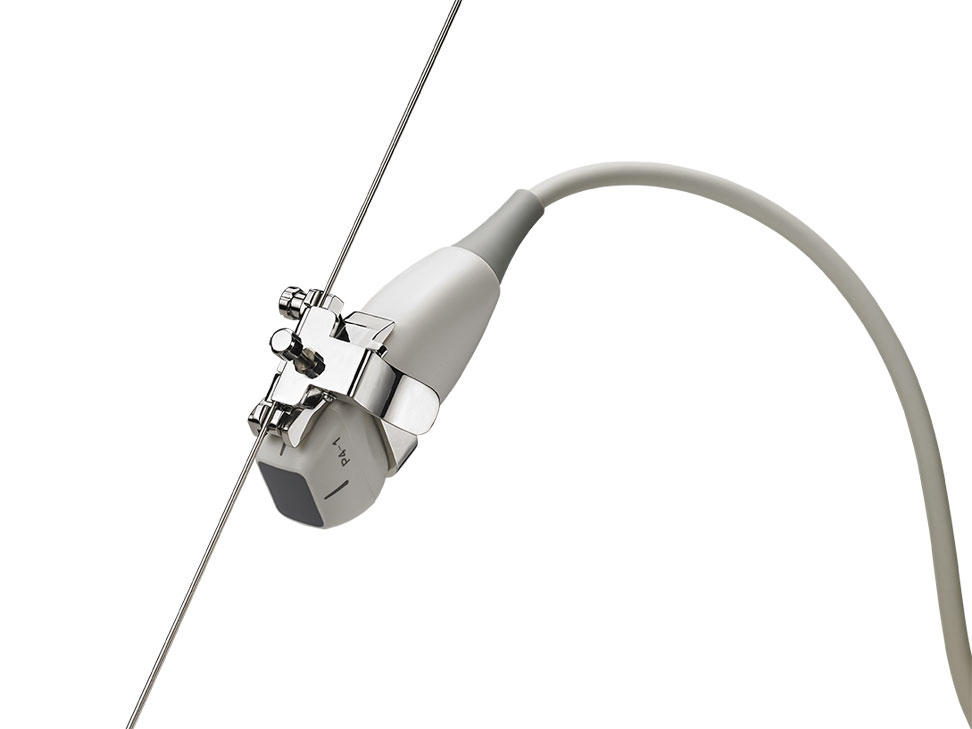

P4-1
Application: Adult Cardiac, Ped-Cardiac, TCD, Adult Abdomen
Bandwidth: 1-4MHz
FOV (Max): 90°
Biopsy Guide: JSM-020, 13°, 24°, reusable

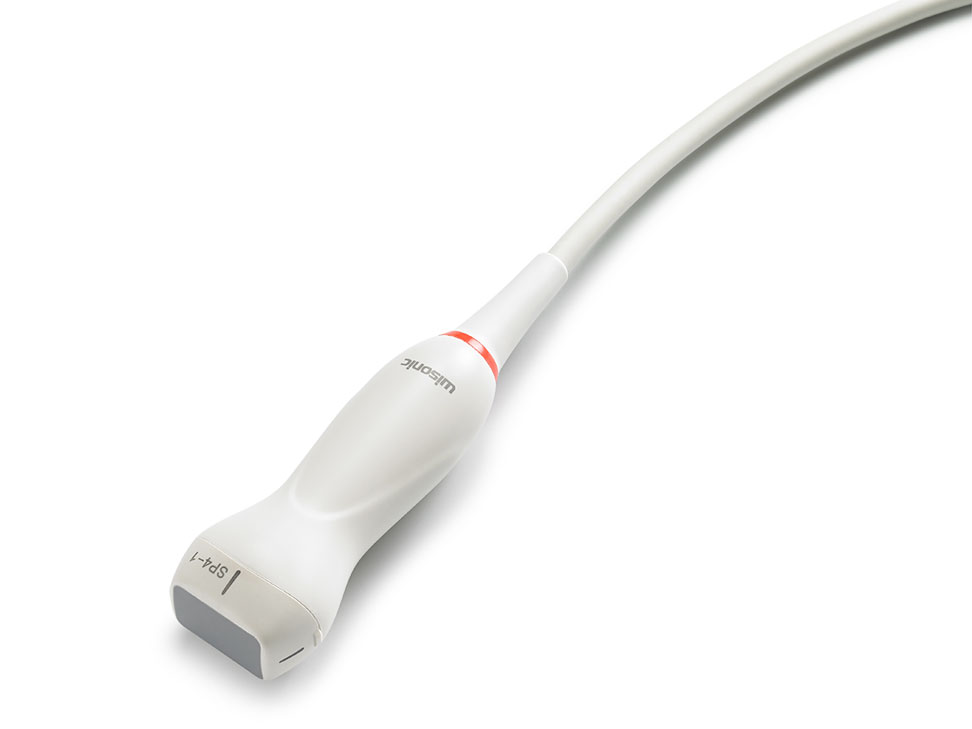

SP4-1
Application: Adult Cardiac, Ped-Cardiac, TCD, Adult Abdomen
Bandwidth: 1-4MHz
FOV (Max): 90°
Biopsy Guide: Not available

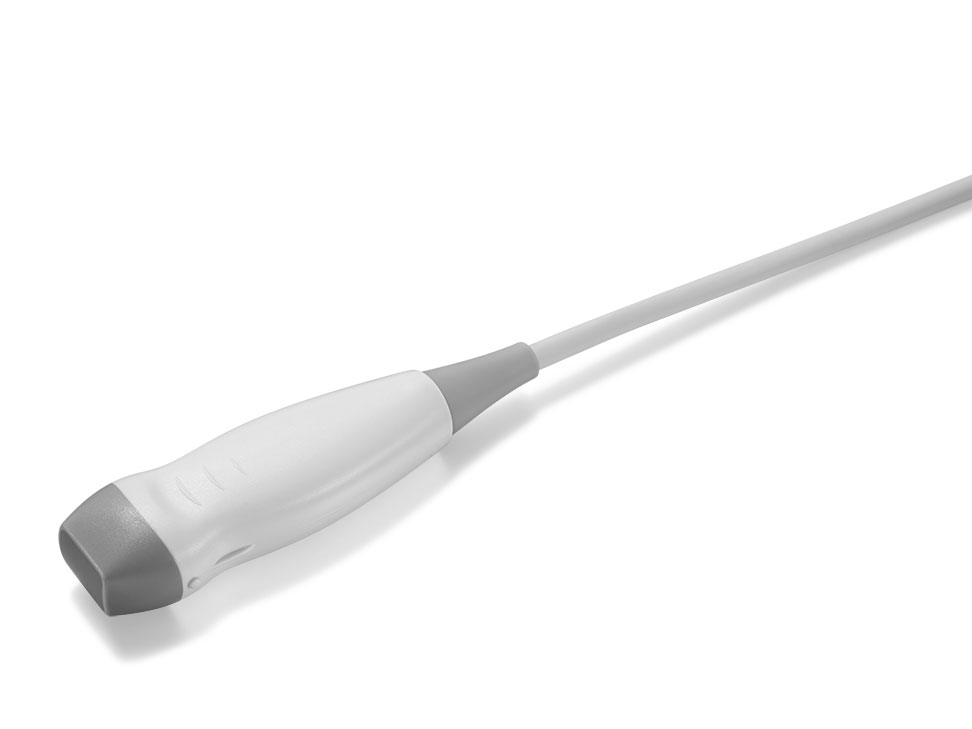

P7-3
Application: Ped-Cardiac, Ped-Abdomen
Bandwidth: 3-7MHz
FOV (Max): 90°
Biopsy Guide: Not available
