Electrocardiograph
Features:
- 5.6 inch color LCD touch screen, 12-lead simultaneously acquisition
- 5000 ECG files can be saved, more ECG files can be stored via USB port
- Freeze, Pre-10-second print and Trigger print function to observe any abnormal ECG waveforms
- HR detection alarm and pacemaker detection supported
- Cine-loop function: saved ECG waveform can be played back
- Auto-save function: users can choose whether to automatically save the files with the printout or not

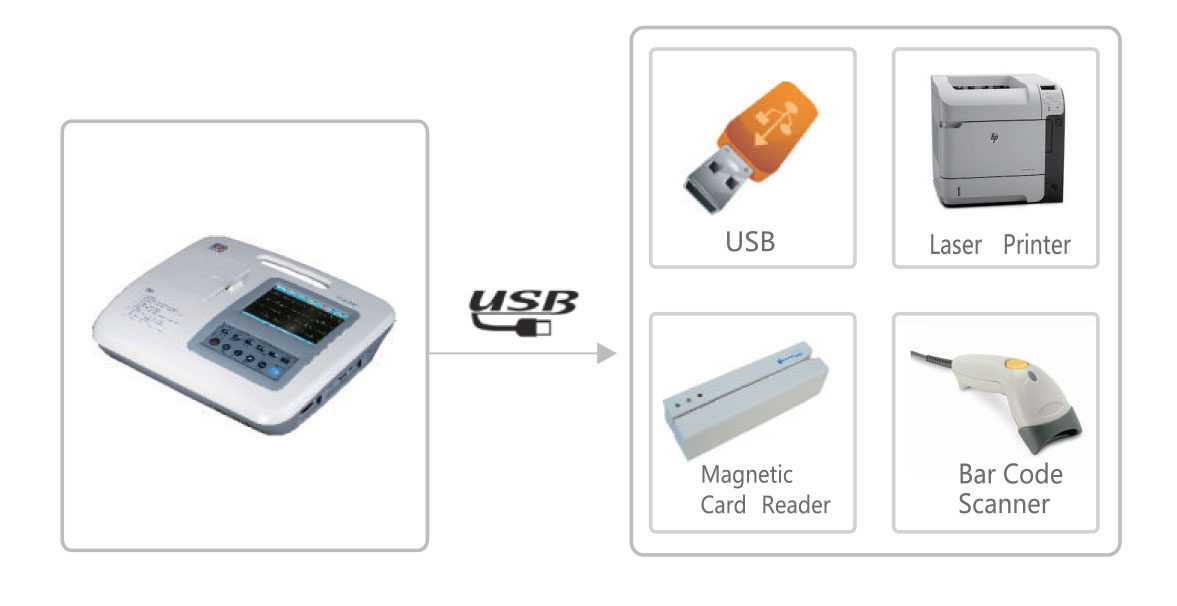

- Support magnetic card reader, bar code scanner, transferring information conveniently
- Support external laser printer to achieve A4 size report output
- Data management software on PC(optional)
- Reliable automatic measurement & Interpretation tested with CSE&AHA database
Specification
Basic Specification
| Input Circuit: | Floating, protection against defibrillator and pacemaker detection |
| Lead: | Standard 12 lead |
| Input Impedance: | 50 Ω |
| Input Circuit Current: | 50nA |
| Leakage Current: | < 10μA |
| Calibration Voltage: | 1mV 2% |
| A/D Convertor | 24bits |
| Frequency Response: | 0.05H~165Hz (-3dB) |
| Time Constant: | 3.2s |
| Noise Level: | < 12μVp-p |
| Filter: | AC: 50/60Hz (-20dB); EMG:25Hz/35Hz/45Hz(-3dB); ADS and Baseline auto-adjustment |
| Sensitity: | AUTO 2 5 5, 10, 20, 40 mm/mV 5% |
Record Data
| Measurement: | HR, PR/QT/QTC Interval, P/QRS/T Axis etc. |
| Patient Data: | Date, Time, ID, Name, Gender Age Height, Weight etc. |
| System Data: | Sensitivity, Speed, Institution etc. |
| Analyst Report: | On Off selectable |
Print System
| Printer: | High speed and sensitivity thermal dot recording system |
| Speed: | 5, 6.25, 10, 12.5, 25, 50 mm s 3 |
| Paper: | Roll paper 80mmx20m 30m |
Power Source
| AC: | 100V-240V 10%) 50/60Hz 1Hz) |
| DC: | More than 2-hour continuous operation time with lithium battery after fully charged |
Standard
| Safety Classification: | Type CF |
| Safety Standard: | MDD93/42/EEC, IEC60601-2-25, IEC60601-1, IEC60601-2-51:2003, ANSI/AAMI EC-11, EN 1441-1997 |
Input&Output
| External Input: | 10mm V; 5%; Input Impedance 100KΩ |
| External Output: | 10mm V; 5%; Output Impedance 100Ω |
Size&Weight
| Equipment Size: | 345x300x80mm |
| Carton Size: | 400x180x355mm |
| Net Weight: | 2.5kgs (battery included) |
| Gross Weight: | 4.5kgs |
