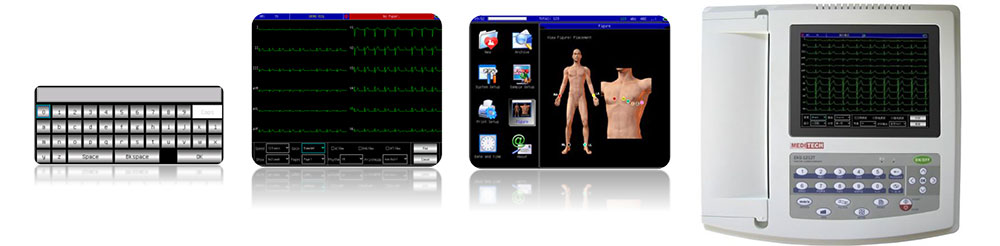

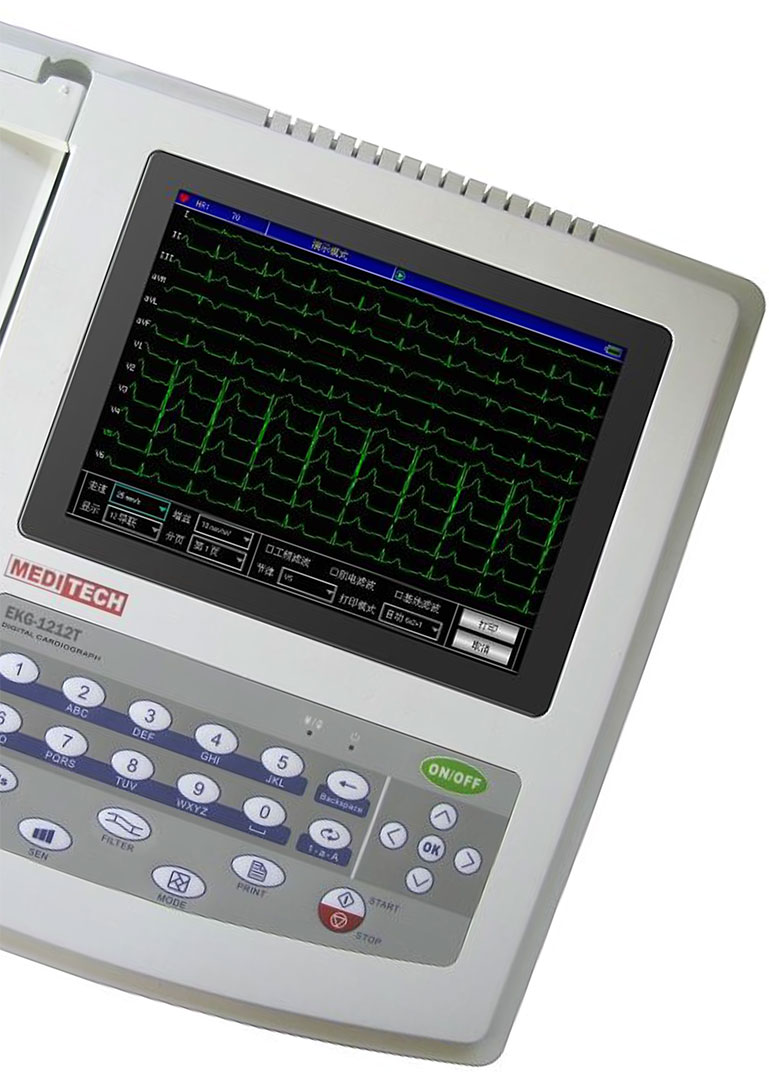

FEATURES

  • TOUCH SCREEN
  • COLOR AND LARGE DISPLAY
  • 10 000 EXAM RECORD
  • Multi Language
  • Keyboard (Name. Age. Weight. Tall)
  • AUTO INTERPRITATION
  • SPEED UP TO 50mm/S
  • BUILT IN RECHARGABLE BATTERY
  • AC/DC POWER SUPPLY
  • PC Software for data transfer and A4 print

TECHNICAL SPECIFICATIONS

  • Power supply: AC:100V~240V,50/60Hz DC:14.8V, 3700 mAh rechargeable lithium battery
  • Atmospheric pressure: 86kPa~106kPa
  • Transportation and Storage
  • Environment temperature: -10℃~55℃
  • Relative humidity: ≤ 95%
  • Atmospheric pressure: 50kPa~106kPa/li>
  • Input way: Floating and defibrillation protection
  • Lead: Standard 12 leads
  • Patient leak current: < 10μA
  • Input impedance: ≥ 50MΩ
  • Frequency response: 0.05Hz~150Hz (-3dB)
  • Time constant: Time constant > 3.2s
  • CMRR: > 60dB, >100dB (Adding filter)
  • EMG interference filter: 35Hz(-3dB)
  • Recording way: Thermal printing system
  • Specification of recording paper: 210mm(W)*20m(L) high-speed thermal paper
  • Paper speed: Auto record: 25mm/s, 50mm/s, , 100mm/s, error:±5%
  • Rhythm record: 25mm/s, 50mm/s, error:±5%
  • Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error:±5%
  • Sensitivity selections: 2.5, 5, 10, 20,40mm/mV, error: ±5%. Standard sensitivity is 10mm/mV±0.2mm/mV.
  • Auto record: Record setup according to auto record format and mode, automatically changing leads, measuring and analyzing.
  • Rhythm record: record setup according to rhythm record format and mode, automatically measuring and analyzing.
  • Manual record: record setup according to manual record format, manually changing leads.
  • Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5) +S(V1)
  • Product safety type: Class I CF applied part; there is defibrillation and pacing protection circuit in it.
  • Enduring polarization voltage: ±300mV
  • Noise level: ≤ 15μVp-p
  • Fuse specification: 2 pcs φ5*20mm AC time lag.
  • Size: 340mm(L)*320mm(W)*85mm(H)
  • Net Weight: 3.2Kg
